molybdenum tzm plate
W Content: 50% （wt%）
Mo Content: 50% （wt%）
Shape: Rod,Plate,Crucible,Custom Parts
Advantage: High Strength
Surface: Bright
Work Temperature：>1800℃
PRODUCT DESCRIPTION

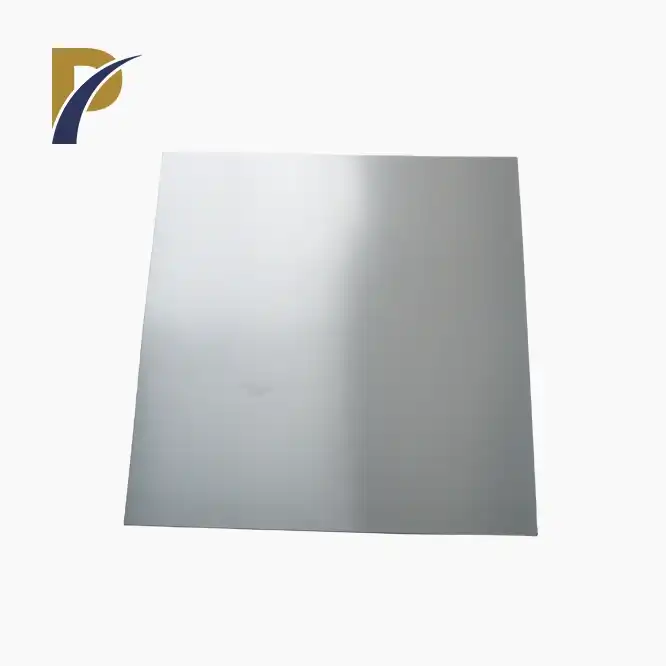

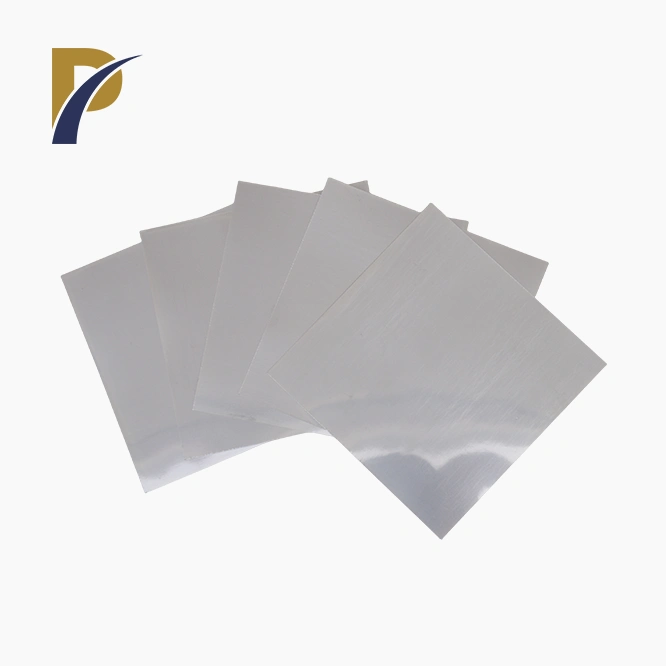

Molybdenum TZM Plate Product Introduction
Molybdenum TZM plates, composed primarily of titanium, zirconium, and molybdenum, offer exceptional strength and performance in high-temperature environments. These plates are highly valued in the aerospace, defense, and energy industries for their excellent high-temperature mechanical properties, superior oxidation resistance, and outstanding thermal conductivity. As a leading supplier of molybdenum TZM plates, Shaanxi Peakrise Metal Co., Ltd. has extensive experience in the production and supply of high-quality refractory metal products for a global clientele.
With over a decade of expertise in the non-ferrous metals industry, Shaanxi Peakrise Metal Co., Ltd. is dedicated to providing reliable, durable, and customizable TZM plate solutions to meet specific industrial needs. We ensure the highest quality standards by utilizing state-of-the-art production techniques and rigorous testing protocols. Our molybdenum TZM plates are crafted to meet the precise demands of industries requiring materials capable of performing in extreme conditions.
 |
 |
 |
Product Parameters
Molybdenum plate
thickness:0.2mm-20mm wideth:10-700mm length:<2500mm
Purity:99.95%,99.97%
Grade:Mo-1,TZM,Mo-La,361,364
Standard:ASTM B386
Surface:black,polished,Alkaline washing,sandblasting
Tolerance as per ASTM B386
| Width inch (mm) | Thickness, inch (mm) | Thickness, inch (mm) |
| ≤12(305) | ≥0.005~0.01(0.13~0.25) | ±0.001(±0.0254) |
| ≥0.01~0.02(0.25~0.51) | ±0.002(±0.0508) | |
| ≥0.02(0.51) | ±10% | |
| ≥12~24(305~610) | ≥0.01~0.025(0.25~0.64) | ±0.0025(±0.0635) |
| ≥0.025(0.64) | ±10% | |
| ≥24~30(610~762) | ≥0.016~0.030(0.41~0.76) | ±0.003(±0.0762) |
| ≥0.03(0.76) | ±10% | |
| ≥30~48 (762~1219) | ≥0.04(1.02) | ±10% |
| ≥0.1875(4.762) | ±10% |
Physical and Mechanical Properties
Chemical content as per ASTM B386:
| Element | Composition % | ||
| Grade | |||
| 361(Mo-1) | 364(TZM) | 366(Mo-30%W) | |
| C | 0.01 max. | 0.01~0.04 | 0.03 max. |
| O,max. | 0.007 | 0.03 | 0.0025 |
| N,max. | 0.002 | 0.002 | 0.002 |
| Fe, max. | 0.01 | 0.01 | 0.01 |
| Ni, max. | 0.005 | 0.005 | 0.005 |
| Si, max. | 0.01 | 0.005 | 0.01 |
| Ti | 0.4~0.55 | ||
| W | 27~33 | ||
| Zr | 0.06~0.12 | ||
| Mo | Remain | Remain | Remain |
Product Functions
Molybdenum TZM plates provide numerous functions that contribute to the efficiency and durability of industrial processes:
- Heat Shields: TZM plates are ideal for manufacturing heat shields used in high-temperature furnaces, providing protection against intense heat.
- Structural Components: The plates are often used in fabricating structural components for aerospace and defense industries, ensuring high reliability in extreme conditions.
- Thermal Management: Due to their excellent heat conduction properties, TZM plates are frequently utilized in thermal management systems to dissipate heat effectively.
- Electrical Applications: With high electrical conductivity, TZM plates are employed in electronic components requiring efficient energy transfer and minimal loss.
 |
 |
 |
 |
Product Applications
The diverse properties of molybdenum TZM plates allow for wide-ranging applications across various industries:
- Aerospace: TZM plates are used in manufacturing components for jet engines and space exploration vehicles, where resistance to extreme heat and pressure is essential.
- Defense: These plates are vital in producing high-performance military equipment, including missile parts and armor plating, due to their high strength-to-weight ratio.
- Energy: In nuclear and thermal power plants, TZM plates are used as heat exchangers and other critical components that require high-temperature stability.
- Electronics: TZM plates play a key role in the production of electronic devices, including semiconductors and other high-precision components, ensuring optimal electrical performance.
 |
 |
Product Process and Production Flow
At Shaanxi Peakrise Metal Co., Ltd., our production process for molybdenum TZM plates follows stringent quality standards to ensure superior product performance:
- Raw Material Selection: We source high-purity molybdenum, titanium, and zirconium to achieve the precise composition of our TZM plates.
- Powder Metallurgy: The materials are mixed and pressed into compact forms, then sintered in a high-temperature vacuum furnace.
- Rolling and Annealing: The sintered plates undergo hot rolling and annealing processes to enhance their mechanical properties and ensure uniform thickness.
- Surface Treatment: The plates are polished or pickled to achieve the desired surface finish, ensuring they meet the required aesthetic and functional standards.
- Quality Testing: Our plates undergo rigorous mechanical, thermal, and chemical testing to ensure they meet or exceed industry specifications.
 |
 |
 |

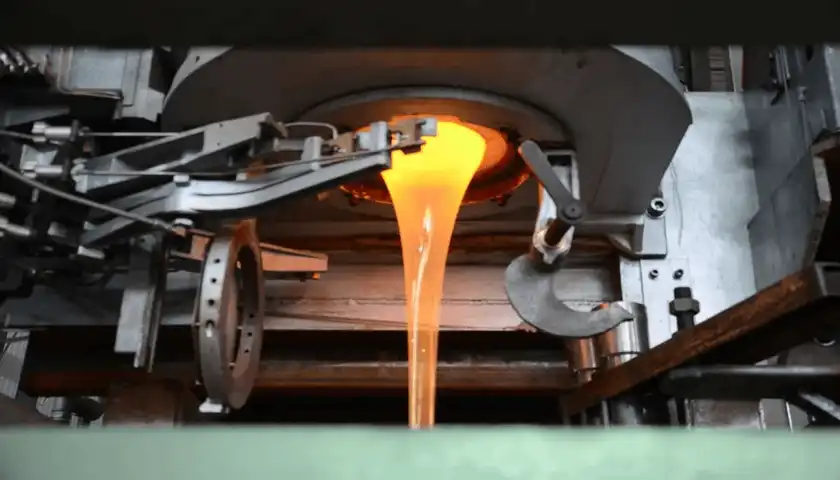

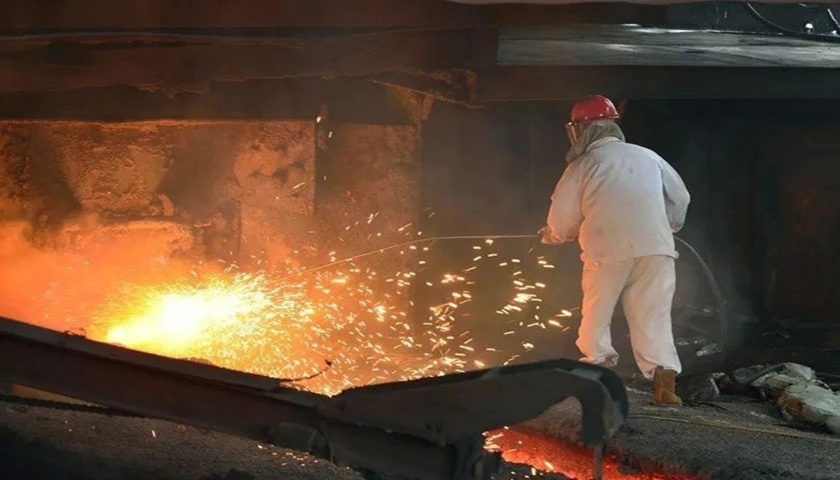

Our Factory
Shaanxi Peakrise Metal Co., Ltd. operates a cutting-edge facility equipped with advanced machinery, including vacuum arc melting furnaces, rolling mills, CNC machines, and plasma welders. Our factory is ISO 9001 certified, ensuring that every stage of production adheres to the highest quality standards. With a dedicated team of engineers and production specialists, we maintain strict control over each aspect of the manufacturing process, from material selection to final product delivery.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Our Quality Inspection
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Logistics and Packaging
- Wooden Packaging: Durable wooden crates for protection during shipping.
- Carton Packaging: Secure cardboard boxes for smaller shipments.
- Foam-Filled Packaging: Additional protection to avoid damage during transit.
- Waterproof and Moisture-Proof Packaging: Ensures the integrity of products in humid environments.
- Custom Packaging: Tailored packaging solutions to meet specific customer requirements.
Logistics Options:
- Sea Freight: Ideal for bulk shipments, offering cost-effective transportation.
- Air Freight: Faster delivery for urgent orders, ensuring timely arrival.
- Land Freight: Efficient transportation for regional and intercontinental destinations.
- Multimodal Transport: A combination of sea, air, and land transport for optimal delivery routes.
- Courier Services: For smaller orders, offering quick and reliable delivery.
 |
 |
 |
 |
 |
 |
 |
 |
Why Choose Us?
- Extensive Industry Experience: Over ten years of experience in the production of refractory metals, including tungsten, molybdenum, tantalum, and titanium alloys.
- Comprehensive Product Range: We offer over 100 types of non-ferrous metal products, ensuring that we can meet diverse customer needs.
- Global Reach: Our products are exported to numerous countries, including the United States, Germany, South Korea, and Australia.
- Advanced Technology: We employ state-of-the-art production equipment to ensure the highest quality standards.
- ISO 9001 Certification: Our factory follows stringent quality control procedures, ensuring reliable and consistent product performance.
OEM/ODM Services
Shaanxi Peakrise Metal Co., Ltd. offers comprehensive OEM and ODM services, allowing customers to customize molybdenum TZM plates to their specific needs. Whether you require plates in unique dimensions or specific surface finishes, we are committed to delivering tailor-made solutions that meet your exact requirements.
 |
 |
FAQ
-
What are the main applications of TZM plates? TZM plates are primarily used in aerospace, defense, and energy industries for high-temperature applications such as heat shields, structural components, and thermal management systems.
-
Can the dimensions of the TZM plates be customized? Yes, we offer customization services to meet specific size and surface requirements.
-
What is the minimum order quantity? The minimum order quantity varies depending on the size and specifications, but we are flexible with both small and large orders.
-
How do you ensure product quality? Our products undergo strict quality control processes, including mechanical and chemical testing, to ensure they meet industry standards.
-
What are your shipping options? We provide various shipping options, including sea, air, and land freight, depending on the customer's requirements.
Contact Us
If you are looking for high-quality molybdenum TZM plates, Shaanxi Peakrise Metal Co., Ltd. is your trusted partner. Contact us at info@peakrisemetal.com to learn more about our products and services. We look forward to establishing long-term partnerships with customers worldwide.
