tungsten plates
Purity: 99.95%
Density: 19.3 G/cm3
Thickness: Min 0.2mm
Wdith: Max 550mm
Length: Max 700mm
Standard: ASTM B760
Flatness: ≤2%
Origin: Chima
PRODUCT DESCRIPTION

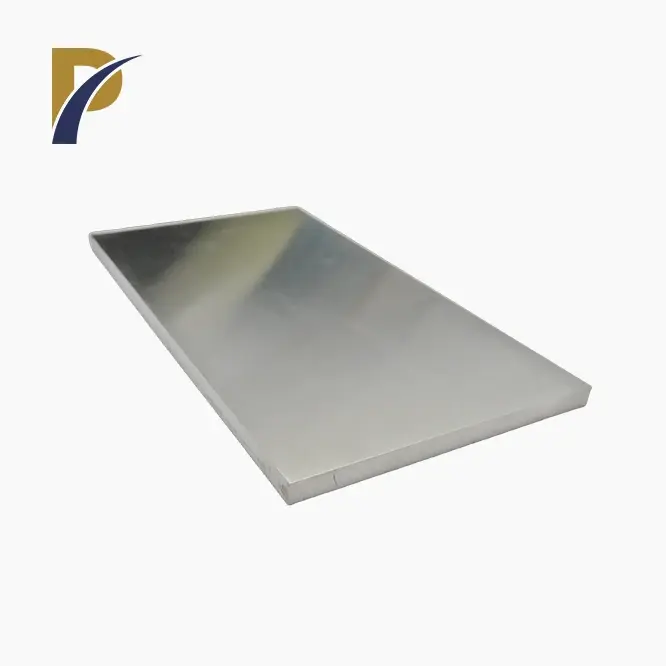

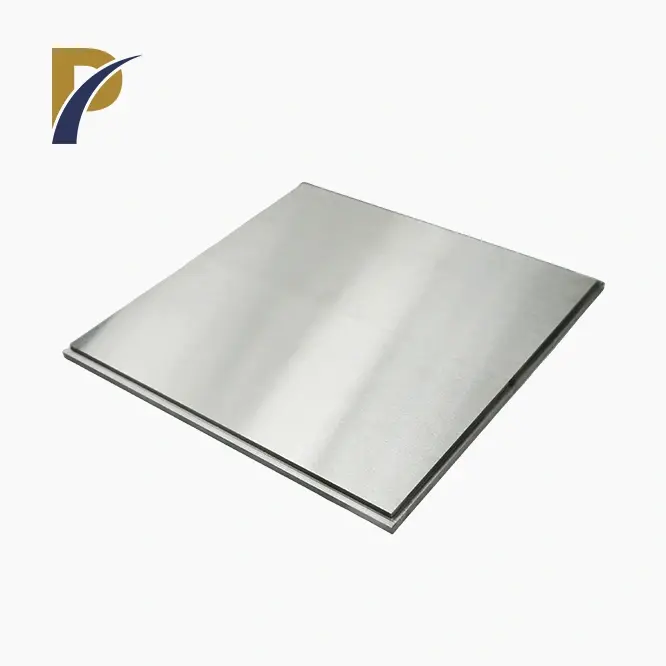

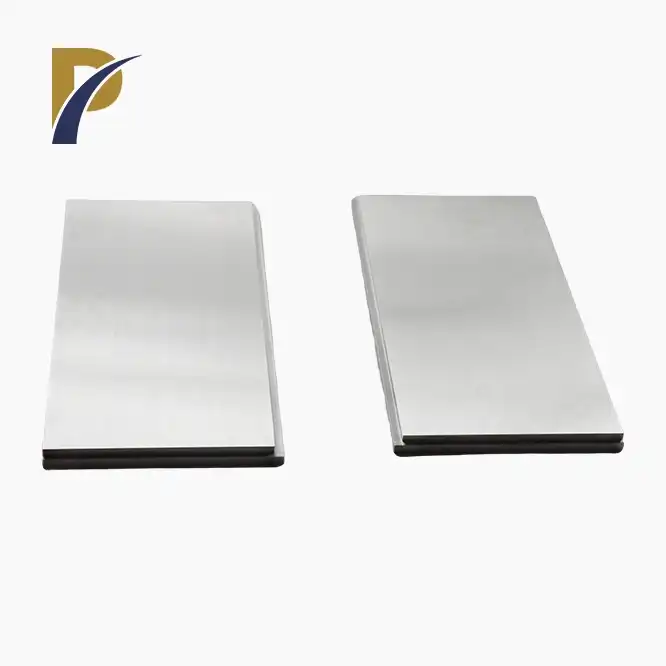

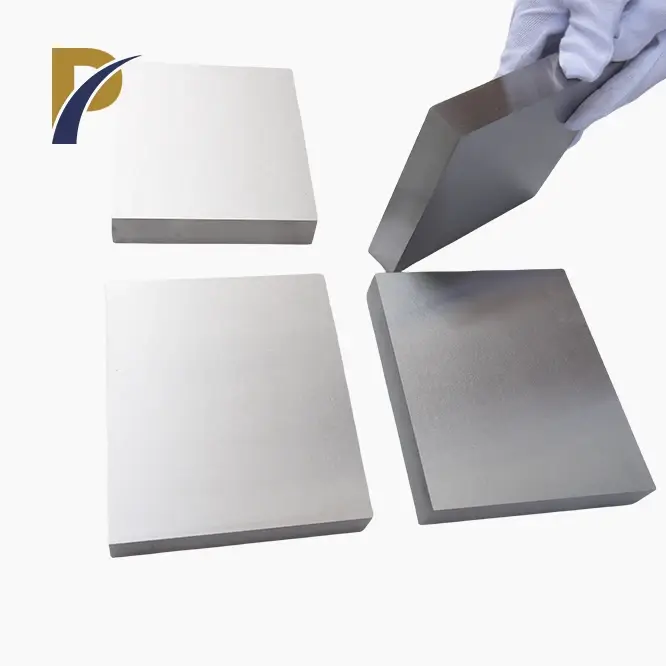

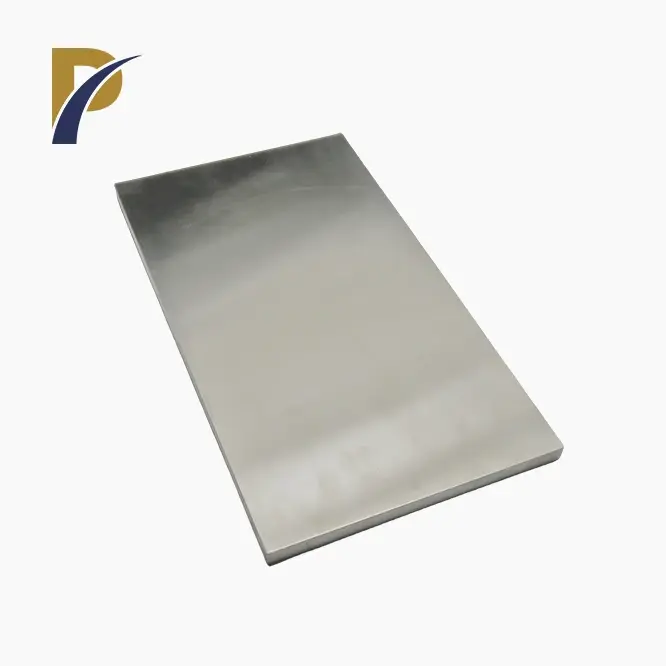

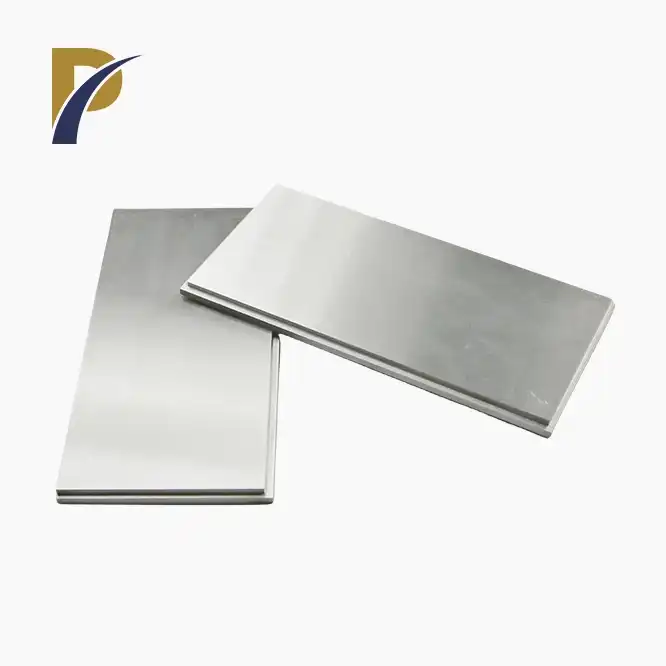

Tungsten Plates Introduction
Tungsten Plates stand as vital parts in a wide cluster of enterprises, celebrated for their extraordinary physical and substance properties that empower maximized operation in outrageous conditions. At Shaanxi Peakrise Metal Co., Ltd., we are devoted to assembling them that exemplify the highest principles of value and accuracy, custom fitted to satisfy the severe needs of present day modern applications.
Product Parameters
General Specifications
| Property | Value |
|---|---|
| Thickness Range | 0.5 mm - 100 mm |
| Width Range | 10 mm - 500 mm |
| Length Range | 100 mm - 2000 mm |
| Density | 19.3 g/cm³ |
| Melting Point | 3422°C |
| Hardness | 2500 HV |
Chemical Composition
| Element | Content (%) |
|---|---|
| Tungsten (W) | ≥99.95 |
| Iron (Fe) | ≤0.03 |
| Nickel (Ni) | ≤0.01 |
| Cobalt (Co) | ≤0.01 |
| Other Impurities | ≤0.01 |
Mechanical Properties
| Property | Value |
|---|---|
| Yield Strength | 550 MPa |
| Tensile Strength | 600 MPa |
| Elongation | 2% |
| Thermal Conductivity | 170 W/m·K |
| Electrical Resistivity | 5.3 μΩ·cm |
 |
 |
Physical and Chemical Properties
Tungsten plates exhibit several key physical and chemical properties that make them suitable for a range of applications:
High Melting Point: Tungsten has the highest melting point of all metals, making it ideal for high-temperature environments.
High Density: With a density of 19.3 g/cm³, they are exceptionally heavy and robust, providing stability in various applications.
Hardness: The high hardness of it ensures they are highly resistant to wear and abrasion.
Corrosion Resistance: They are resistant to oxidation and corrosion, even at elevated temperatures.
 |
 |
Tungsten Plates Functions
High-Temperature Stability: It maintain structural integrity at temperatures exceeding 3000°C, making them ideal for use in high-temperature environments such as aerospace and nuclear reactors.
Wear Resistance: The hardness and density of it contribute to their excellent wear resistance, useful in applications requiring high durability.
Radiation Shielding: Due to their high density, They are effective in shielding against radiation, making them suitable for medical and scientific applications.
Product Applications
Aerospace Industry: Used in rocket nozzles, thrusters, and other high-temperature components due to their ability to withstand extreme conditions.
Military Applications: Utilized in armor-piercing ammunition and radiation shielding due to their high density and strength.
Electronics: Applied in electrical contacts and heat sinks because of their excellent thermal and electrical conductivity.
Medical Devices: Employed in radiation shielding for medical imaging and treatment equipment.
Manufacturing Process and Production Flow
Powder Metallurgy: Tungsten powder is compressed and sintered to form it.
Machining: Plates are cut, milled, and finished to the required dimensions and surface specifications.
Inspection: Rigorous quality control ensures that all products meet strict standards for physical and chemical properties.
 |
 |
Our Factory
Shaanxi Peakrise Metal Co., Ltd. boasts state-of-the-art production facilities, including intermediate frequency sintering furnaces, vacuum arc melting furnaces, and precision machining equipment. Our advanced equipment and skilled workforce ensure that tungsten plates are manufactured to the highest standards of quality and precision.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Our Quality Inspection
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Packaging and Logistics
Packaging
Wooden Crates: For robust protection during transit.
Carton Boxes: Suitable for smaller quantities and easy handling.
Foam Padding: To prevent damage during shipping.
Waterproof Packaging: Ensures protection against moisture.
Custom Packaging: Tailored to specific customer requirements.
Logistics
Sea Freight: Cost-effective for bulk shipments.
Air Freight: Faster delivery for urgent orders.
Land Transport: Reliable for regional deliveries.
Multimodal Transport: Combines various transportation methods for efficiency.
Express Courier: For expedited deliveries.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Why Choose Us
Extensive Experience: Over a decade of experience in the non-ferrous metal industry.
Comprehensive Capabilities: From manufacturing to R&D and product testing.
Global Reach: Products exported to major markets including the US, Europe, and Asia.
Advanced Equipment: Utilization of cutting-edge technology in production.
Customer Focus: Committed to high-quality products and exceptional service.
 |
OEM/ODM Services
We offer customized processing services to meet specific requirements for it. Our team works closely with clients to ensure that products are tailored to their exact specifications.
 |
 |
FAQs
What is the maximum thickness of our products you can supply?
We can supply it up to 100 mm thick.
Do you offer custom sizes for the products?
Yes, we provide custom sizes and shapes based on your specifications.
What is the typical lead time for orders?
Lead time varies depending on order size and customization, typically ranging from 2 to 4 weeks.
How are they packaged for shipping?
They are packaged in wooden crates, carton boxes, and foam padding to ensure safe delivery.
Can you provide samples of the products?
Yes, we offer samples for evaluation prior to placing a full order.
Contact us
For more information about our tungsten plates or to discuss your specific requirements, please contact us at info@peakrisemetal.com. Our team is ready to assist you with any questions and provide the best solutions for your needs. Partner with Shaanxi Peakrise Metal Co., Ltd. for High-Strength Copper Tungsten Plate and superior service.
