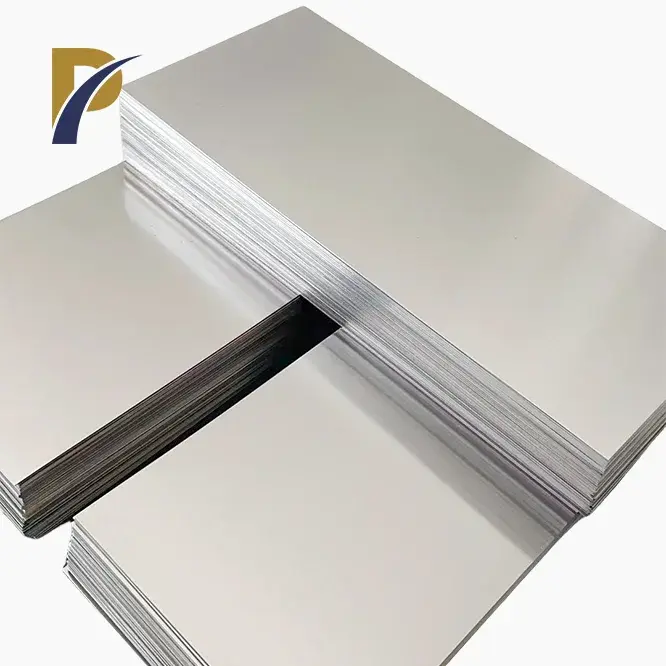

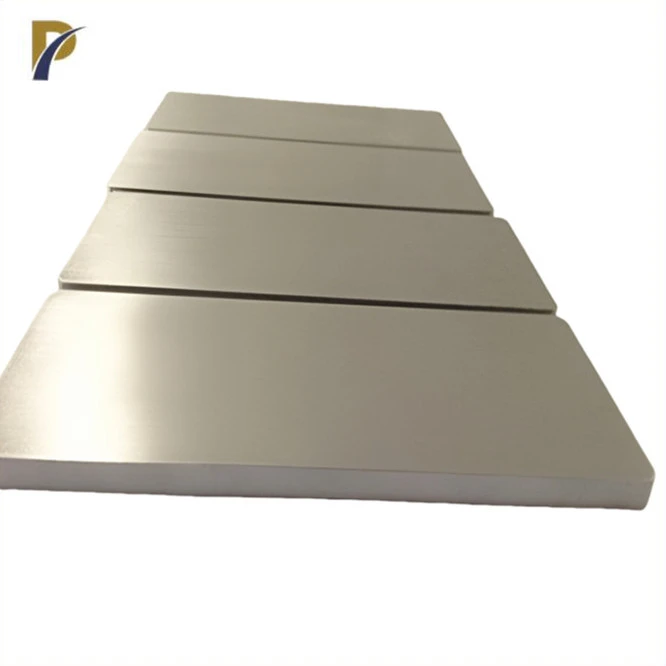

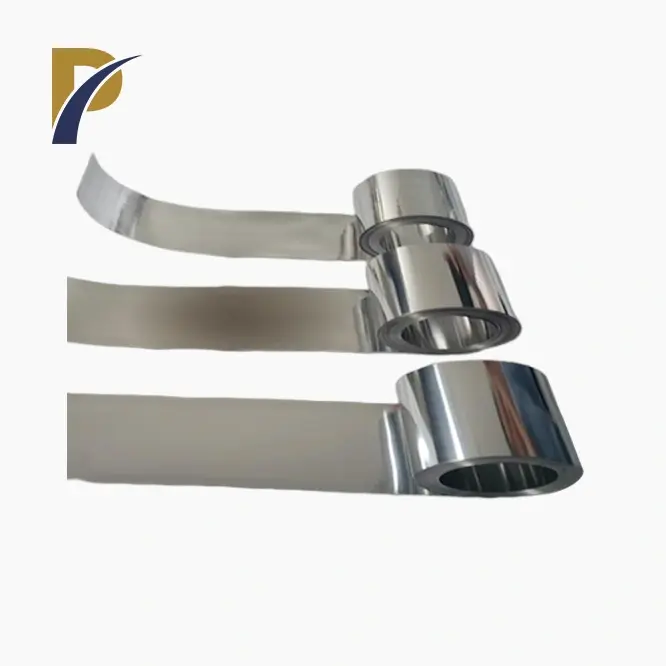

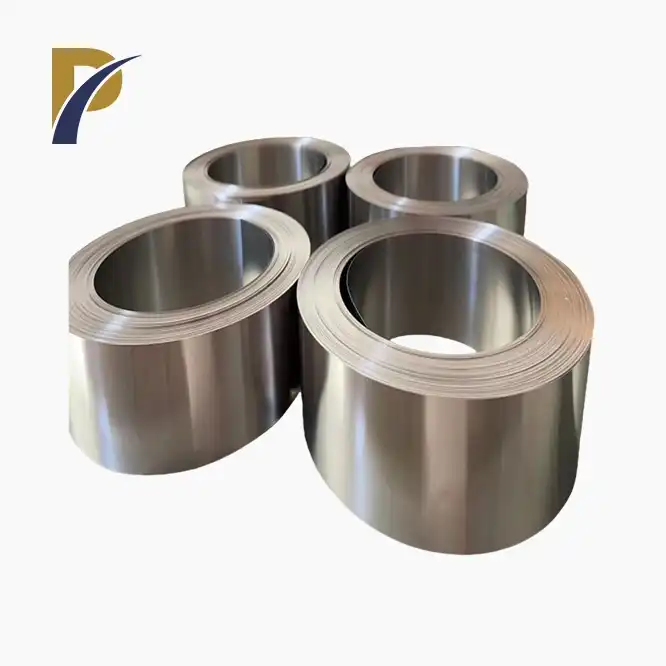

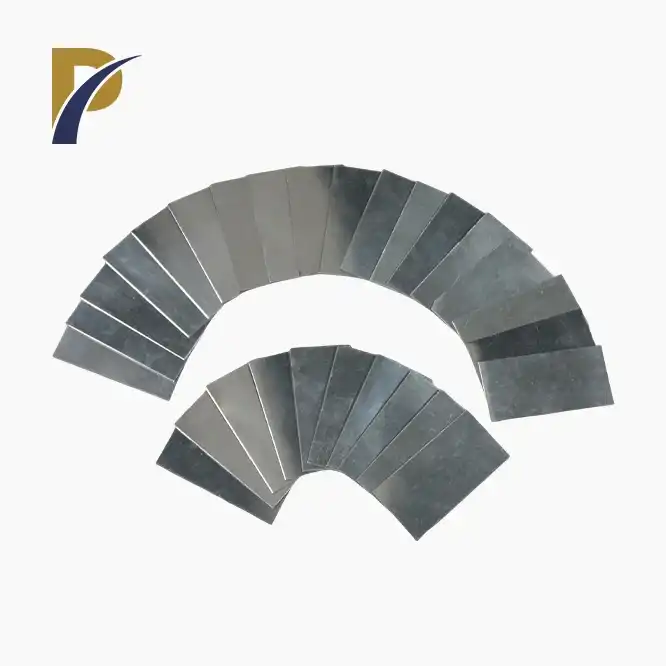

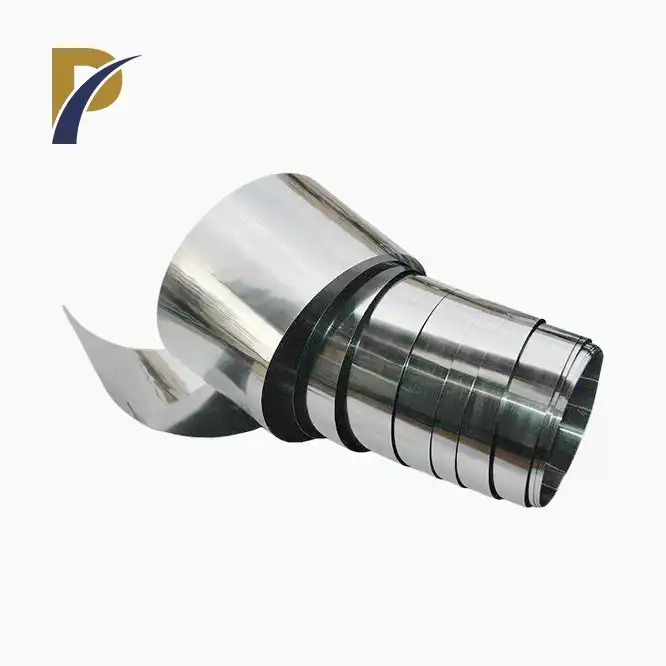

molybdenum plate belt
W Content: 50% （wt%）
Mo Content: 50% （wt%）
Shape: Rod,Plate,Crucible,Custom Parts
Advantage: High Strength
Surface: Bright
Work Temperature：>1800℃
PRODUCT DESCRIPTION
Product Introduction: Molybdenum Plate Belt by Shaanxi Peakrise Metal Co., Ltd.
Molybdenum plate belts play a critical role in industries that demand high-temperature resistance, strength, and durability. These molybdenum belts are crafted to withstand extreme conditions, making them an indispensable material in sectors such as aerospace, electronics, and metallurgical processes. Molybdenum’s unique properties, including its high melting point (2623°C) and excellent thermal and electrical conductivity, make it ideal for manufacturing components that face heavy mechanical and thermal stress.
At Shaanxi Peakrise Metal Co., Ltd., we are proud to be a reliable supplier of molybdenum plate belts, offering tailored solutions to meet the diverse needs of our global clientele. With years of experience in non-ferrous metal production, we specialize in high-quality molybdenum products, providing our customers with robust solutions that enhance the efficiency and longevity of their operations. Our molybdenum plate belts are widely used in manufacturing processes that involve high-temperature furnaces, vacuum evaporation, and thermal treatment.
Our products meet international standards and undergo rigorous quality control to ensure the highest level of performance. Whether you need molybdenum belts for specialized industrial applications or large-scale production, Shaanxi Peakrise Metal Co., Ltd. is equipped to deliver premium-grade materials that support your technical requirements. We are committed to providing exceptional products and services that help our customers maintain their competitive edge in the global market.
 |
 |
 |
Product Parameters Table:
| Parameter | Value |
|---|---|
| Thickness (mm) | 0.2mm-20mm |
| Width (mm) | 100 – 700 |
| Length (mm) | 100 – 2000 |
| Purity (%) | ≥ 99.95 |
| Density (g/cm³) | 10.2 |
| Melting Point (°C) | 2623 |
| Tensile Strength (MPa) | 600 – 700 |
| Width inch (mm) | Thickness, inch (mm) | Thickness, inch (mm) |
| ≤12(305) | ≥0.005~0.01(0.13~0.25) | ±0.001(±0.0254) |
| ≥0.01~0.02(0.25~0.51) | ±0.002(±0.0508) | |
| ≥0.02(0.51) | ±10% | |
| ≥12~24(305~610) | ≥0.01~0.025(0.25~0.64) | ±0.0025(±0.0635) |
| ≥0.025(0.64) | ±10% | |
| ≥24~30(610~762) | ≥0.016~0.030(0.41~0.76) | ±0.003(±0.0762) |
| ≥0.03(0.76) | ±10% | |
| ≥30~48 (762~1219) | ≥0.04(1.02) | ±10% |
| ≥0.1875(4.762) | ±10% |
Physical and Mechanical Properties:
Performance requirements as per ASTM B386:
| Material type |
Condition
|
Thickness inches(mm) | Tensile Strength B Min, klb/in2 (MPa) | Yield Strength 0.2% Residual Deformation, Min, klb/in2 (mm) | Elongation, min, % (2 inches or 50 mm) | Minimum bending radius |
| 361 | SR | ≤0.001(0.025) | 115(795) | 95(655) | 1 | |
| 364 | SR | 0.01~0.025(0.25~0.635) | 120(830) | 100(690) | 6 | 2t |
| ≥0.025~0.06(0.635~1.5) | 120(830) | 100(690) | 7 | 2t | ||
| ≥0.06~0.09(1.5~2.3) | 100(690) | 100(690) | 9 | |||
| ≥0.09~0.189(2.3~4.75) | 120(830) | 100(690) | 10 | |||
| 3/16~1/2(4.75~12.7) | 120(830) | 100(690) | 10 | |||
| ≥1/2~1(12.7~25.4) | 110(760) | 95(655) | 10 | |||
| ≥1~1-1/2(25.4~38) | 100(690) | 85(585) | 8 | |||
| 364 | RX | ≥3/16~1-1/2(4.75~38) | 75(515) | 45(310) | 10 | |
|
A SR=stress relief； RX=almost completely recrystallized , B Longitudinal and transverse testing between 65°F and 85°F (18°C and 29°C) C t=Material thickness D is limited by transverse rolling, transverse elongation is easy to edge. |
||||||
Product Applications:
Molybdenum plate belts are widely used across various industries due to their specialized properties:
- Aerospace: Used in the production of high-temperature structural components, molybdenum belts contribute to the manufacturing of heat shields, rocket nozzles, and other aerospace components.
- Metallurgy: Molybdenum belts are essential in metal processing applications, particularly for vacuum furnaces and sintering processes, where high heat and stability are critical.
- Electronics: As a key component in the electronics industry, molybdenum belts are utilized in the production of semiconductor devices and LED substrates.
- Thermal Processing: Due to their excellent heat resistance, these belts are used in high-temperature furnaces for glass melting, ceramics firing, and metal annealing.
- Vacuum Coating: Molybdenum belts play a role in the production of thin films used in optical coatings, solar panels, and other applications where precision and durability are necessary.
 |
 |
OEM/ODM Services:
At Shaanxi Peakrise Metal Co., Ltd., we understand that our customers often require custom solutions to meet their unique application needs. That’s why we offer comprehensive OEM/ODM services, enabling you to specify your desired thickness, width, and other parameters for molybdenum plate belts. Our production facilities are equipped to handle small or large orders, and we ensure timely delivery to meet your project deadlines.
 |
 |
Why Choose Us:
- Extensive Industry Experience: With over a decade of experience in the production and supply of non-ferrous metals, we understand the demands of the global market and consistently deliver high-quality molybdenum products.
- Advanced Equipment: Our production facilities house state-of-the-art equipment, including vacuum arc melting furnaces, plasma electron beam melting furnaces, and laser cutters, ensuring precision manufacturing.
- Global Reach: Our products are exported to more than 15 countries, including the United States, Germany, South Korea, and Australia, with a strong network of satisfied customers.
- Quality Assurance: We are committed to producing molybdenum belts that meet or exceed international standards, with strict quality control processes in place at every stage of production.
- Customized Solutions: From custom dimensions to specialized processing requirements, our OEM/ODM services ensure that you receive a product tailored to your exact needs.
 |
 |
 |
 |
FAQ:
-
What is the lead time for orders?
- Our standard lead time is 2-4 weeks, depending on the quantity and customization requirements.
-
Can I request custom dimensions for molybdenum plate belts?
- Yes, we offer custom sizes and thicknesses to meet your specific requirements.
-
What is the minimum order quantity (MOQ)?
- Our MOQ is typically 10 pieces, but this can vary depending on the specifications.
-
How do you ensure product quality?
- Every product undergoes rigorous testing to meet industry standards. We also offer certificates of analysis upon request.
-
What shipping options are available?
- We offer sea, air, and land shipping options, with express delivery available for urgent orders.
Packaging:
- Wooden Packaging: Secure wooden crates for heavy-duty transport.
- Carton Packaging: Lightweight and durable for smaller items.
- Foam-Filled Packaging: Provides added protection against impact.
- Waterproof and Moisture-Proof Packaging: Ensures the product remains safe from environmental damage.
- Custom Packaging: Tailored to your specific needs, ensuring optimal safety during transport.
 |
 |
 |
 |
 |
 |
 |
 |
Logistics:
- Sea Freight: Ideal for large, bulk orders.
- Air Freight: For faster delivery of urgent orders.
- Land Transport: Reliable for domestic or nearby regions.
- Multimodal Transport: Combining different transport methods for cost-effective and efficient delivery.
- Express Courier: Available for urgent small orders.
Contact Us (CTA):
Are you looking for a reliable supplier of high-quality molybdenum plate belts? Contact Shaanxi Peakrise Metal Co., Ltd. today to learn more about how our products can enhance your business operations. With our expertise in non-ferrous metal production, we are here to meet your needs. For inquiries, please email us at info@peakrisemetal.com. We look forward to collaborating with you!
