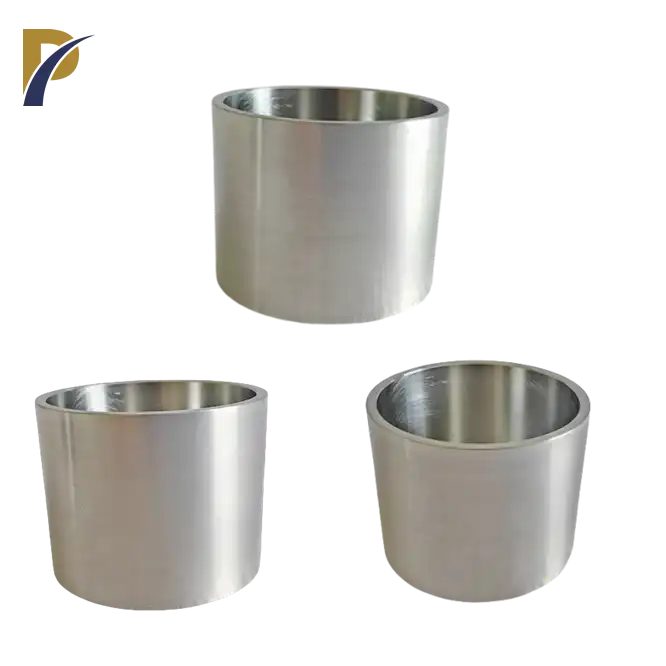

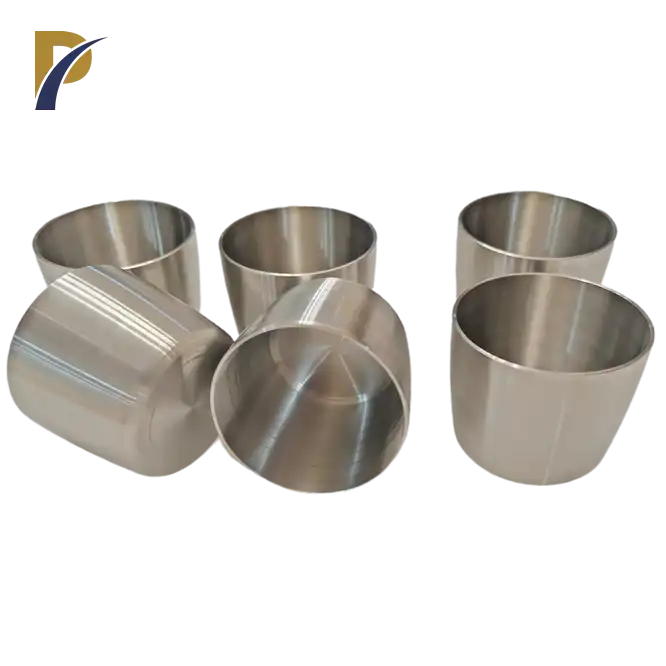

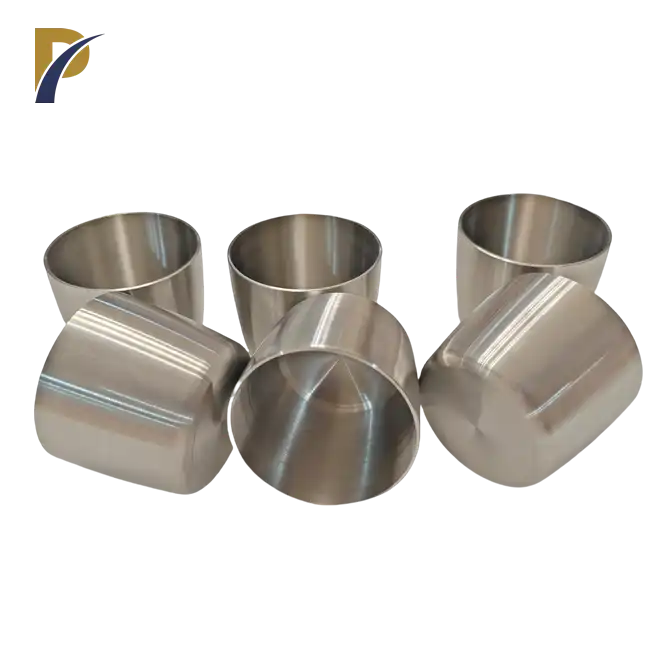

50ml 1mm thickness pure zirconium crucible


Name: ICP-OES Laboratory Purification Zirconium Crucible
Material: Zirconium & Zirconium Alloy
Grade: Zr702,Zr705,R60001,R60901
Shape: Crucible
Type: Low Form Zirconiu Crucible, Flanged Rims Zirconium Crucible,straight Wall Zirconium Crucible, Tapered Zirconium Crucible, Cylindrical Zirconium Crucible
Density: 6.51g/cm3
Size: 5ml,10ml,15ml,25ml,30ml,35ml,40ml,45ml Etc.
Custom: Yes
MOQ: 5pcs
Advantage: Corrosion Resistant, Good Mechanical Strength At High Temperatures
Send Inquiry Download

PRODUCT DESCRIPTION

Pure Zirconium Crucible Product Introduction for Shaanxi Peakrise Metal Co., Ltd.



Product Introduction


Zirconium is a highly valued metal known for its outstanding resistance to heat and corrosion. Pure zirconium crucibles, in particular, are an essential tool in industries that require high-performance materials for use in extreme environments, such as in metal smelting, chemical analysis, and nuclear research. Shaanxi Peakrise Metal Co., Ltd. is a leading manufacturer and supplier of high-quality pure zirconium crucibles, recognized globally for their durability, precision, and top-tier performance. With over a decade of experience in the non-ferrous metals industry, Peakrise Metal has positioned itself as a trusted supplier for zirconium and other specialty metal products, serving industries across the globe. We are committed to providing our clients with products that meet the highest standards of quality, reliability, and performance.

Name: ICP-OES Laboratory Purification Zirconium Crucible Zr702 Zr Crucible
Material: Zirconium & Zirconium alloy
Grade: Zr702,Zr705,RO60001,RO60901
Density: 6.51g/cm3
Shape: Crucible
Type: Low form zirconiu crucible, flanged rims zirconium crucible,straight wall zirconium crucible, tapered zirconium crucible, Cylindrical zirconium crucible
Volume: 5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml,45ml,50ml etc,
Custom Yes, process as per customer's drawing.
Surface Bright
Place of origin: Shaanxi ,China
MOQ 1pc



Zirconium crucible low form are especially adaptable to the needs of the analytical chemistry laboratory, such as in strong alkaline fusions employed to reduce refractory samples to a soluble

form, and for high temperature ignition ashing purposes.



Zirconium metal is a most effective all-round crucible for fusions using sodium carbonate or sodium peroxide and is an excellent low-cost replacement for platinum. Based on an average of 100 fusions per crucible, zirconium is more cost-effective than less expensive crucibles of porcelain or steel.

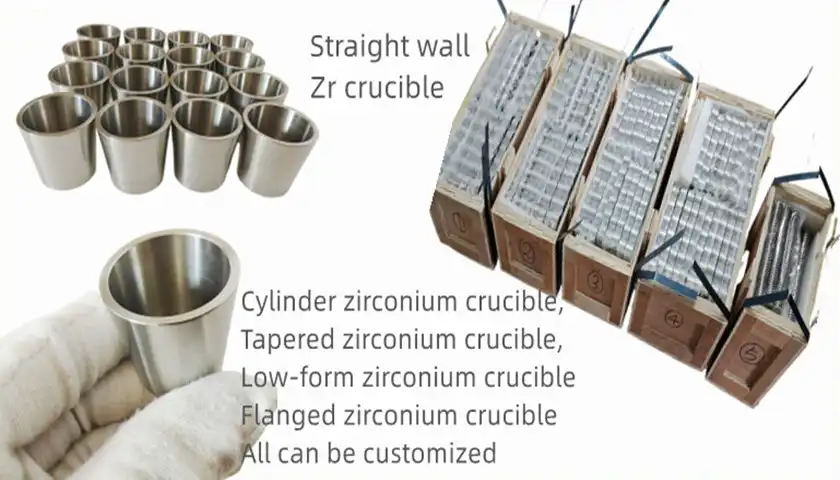

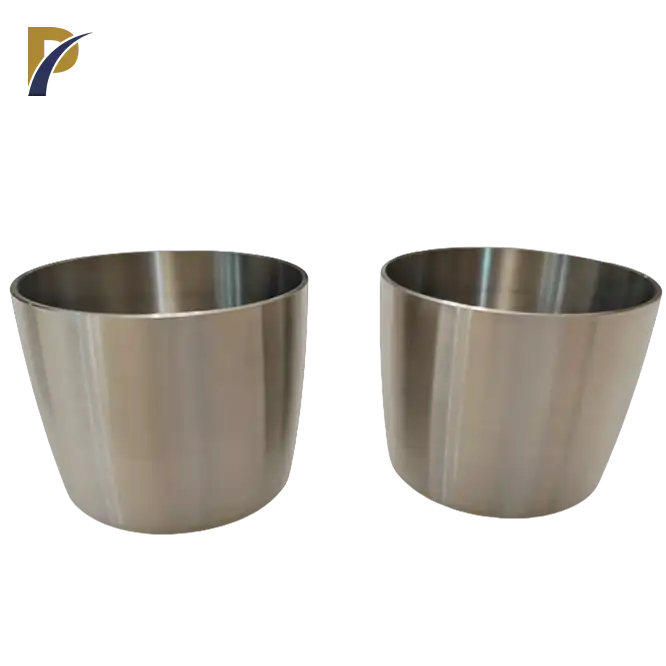

50ml zirconium crucible 50ml zirconium crucible



Product Parameters Table

The Common Size of Zirconium Crucible:

Low form Zirconium crucible
Top diameter(mm) Bottom diameter (mm) Height (mm) Wall thickness (mm) Capacity (ml)
22 18 20 2 3.6ml
26 16 20 2 5.0ml*2mm
30 24 26 2 10ml*2mm
40 26 41 1 30ml*1mm
42 27 42 2 30ml*2mm
42 30 42 1.6 35ml*1.6mm
41 33 42 2 35ml*2mm
43 34 40 1 40ml*1mm
47 40 35 1 45ml*1mm
49 42 36 2 45ml*2mm
48 38 45 3 45ml*3mm
47 40 38.5 1 50ml*1mm
48 40 42 2 50ml*2mm
56 44 50 2 80ml*2mm
AutoFluxer crucible with flanged
48 29 33 2 25ml*2mm
60 36 39 1 50ml*1mm
60 36 43 2 50ml*2mm



We can process various crucibles according to customer drawings.



Physical and Chemical Properties


Zirconium is chemically stable, making it resistant to corrosion by most acids and alkalis. It exhibits remarkable stability in high-temperature environments, allowing it to retain its properties even at extreme temperatures. The unique combination of its high melting point (1855°C) and excellent corrosion resistance makes it ideal for applications where other metals might degrade. Additionally, its low thermal neutron cross-section makes zirconium crucibles highly desirable for use in the nuclear industry.

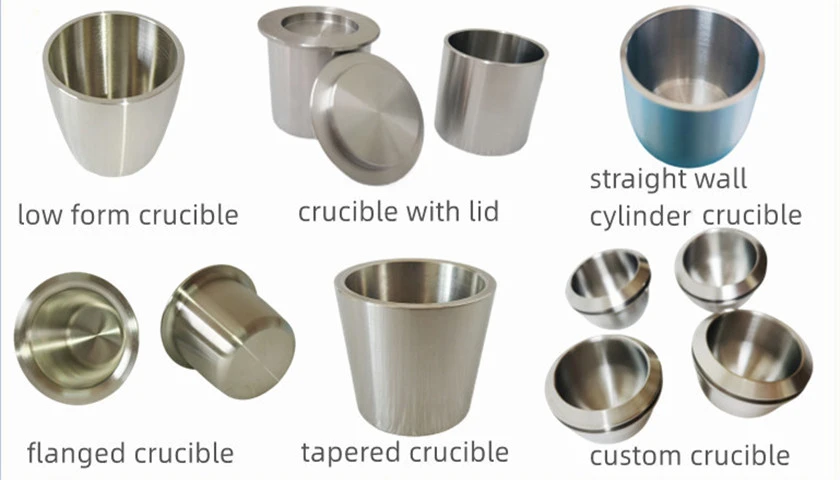

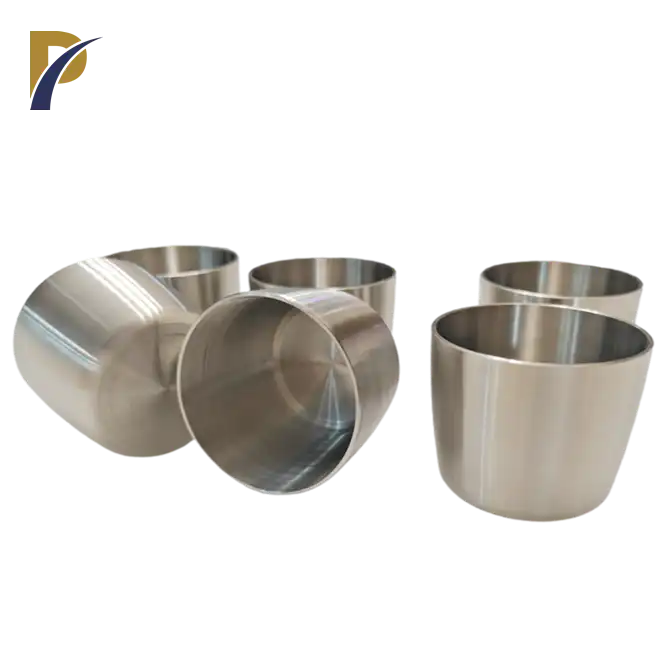

pure zirconium crucible



Product Functions



  1. High Temperature Resistance: With a melting point of 1855°C, zirconium crucibles are ideal for applications that require materials capable of withstanding high temperatures without deforming or melting.
  2. Corrosion Resistance: Zirconium’s superior resistance to corrosion from acids, alkalis, and other chemicals ensures longevity in harsh environments, making it suitable for chemical analysis and smelting operations.
  3. Purity Retention: The high purity of zirconium (≥99.95%) ensures that no contaminants are introduced during high-temperature processes, making it an ideal choice for sensitive applications such as metal refinement and laboratory research.
  4. Thermal Conductivity: The excellent thermal conductivity of zirconium allows for uniform heat distribution, enhancing process efficiency in melting or heat treatment applications.



Product Applications



  1. Aerospace Industry: Zirconium crucibles are used in the production and testing of materials designed for aerospace components that need to withstand extreme temperatures and environments.
  2. Nuclear Energy: Due to its low neutron absorption properties, zirconium crucibles are widely used in nuclear energy research for handling radioactive materials.
  3. Chemical Processing: The chemical inertness of zirconium makes it ideal for use in laboratories and industrial settings where highly corrosive substances are handled.
  4. Metal Refining: Zirconium crucibles are commonly used in the refining of rare metals, offering a contamination-free environment during the smelting process.
  5. Research Laboratories: In academic and scientific research, zirconium crucibles serve as essential tools for experiments involving high-temperature reactions and material testing.

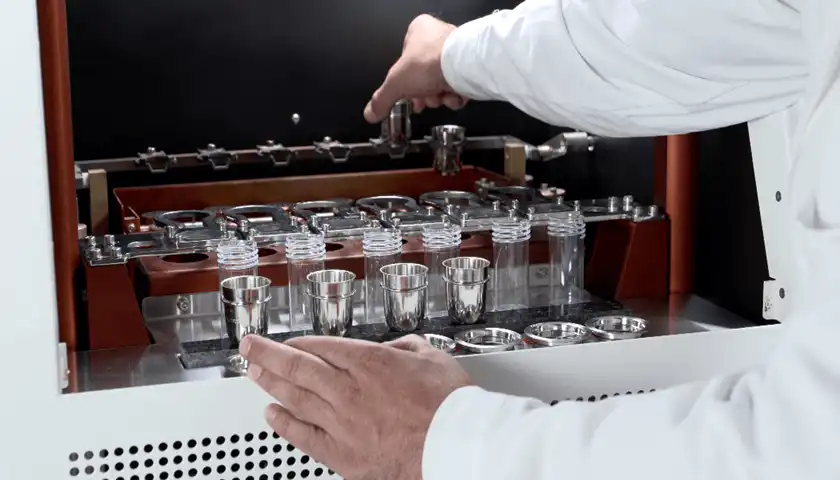

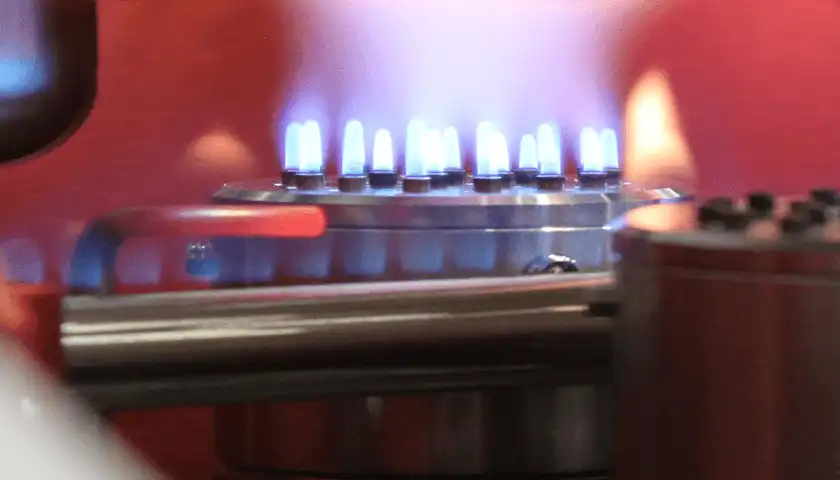

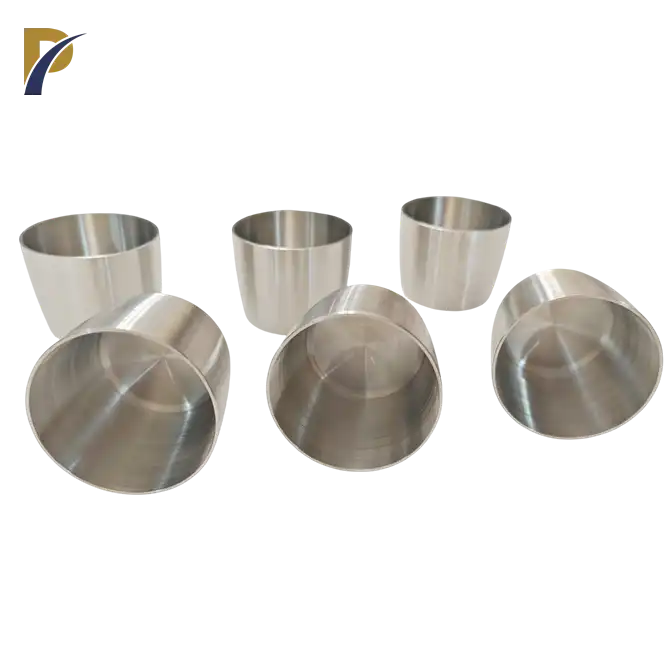

zirconium crucible application 50ml zirconium crucible supplier



Product Process and Production Flow



  1. Raw Material Selection: Only the highest purity zirconium is sourced to ensure the performance of each crucible.
  2. Forming: The zirconium material is subjected to processes such as cold rolling to achieve the desired thickness and shape.
  3. Machining: Precision machining is employed to achieve the exact dimensions required by the client.
  4. Quality Control: Every crucible undergoes rigorous testing to ensure it meets industry standards, including checks for purity, thickness, and resistance properties.
  5. Packaging: Each crucible is carefully packed to prevent damage during shipping, ensuring it reaches the customer in perfect condition.

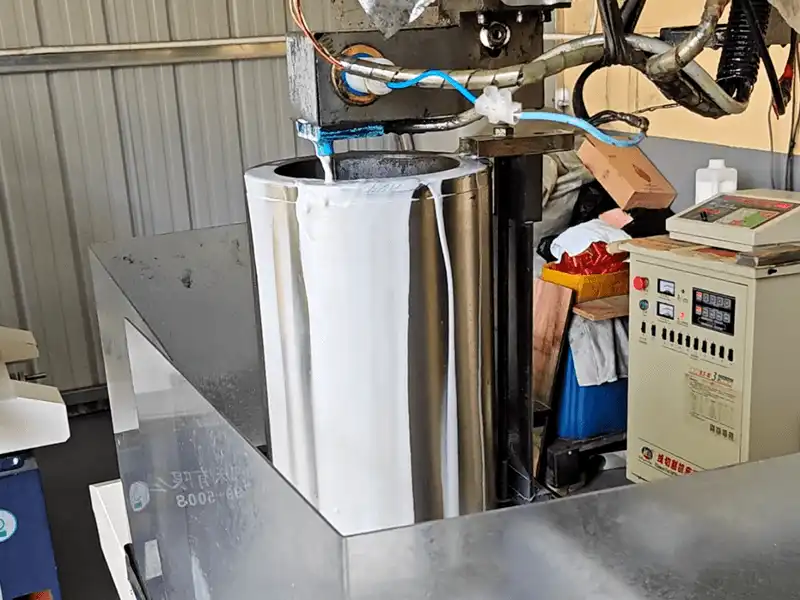

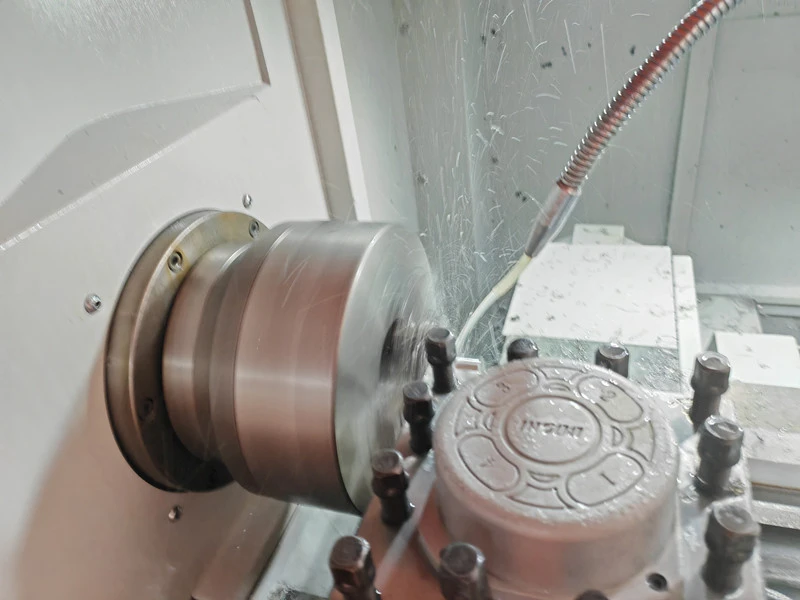

production production



Our Factory


Shaanxi Peakrise Metal Co., Ltd. boasts a world-class production facility equipped with advanced machinery such as vacuum arc melting furnaces, plasma electron beam melting furnaces, and CNC precision machines. Our factory is ISO-certified and adheres to strict quality control processes to ensure the highest standards in every product we manufacture. We maintain an extensive inventory to meet both small and large orders efficiently.



workshop 1 workshop 2 workshop 3 workshop 4 workshop 5
workshop 6 workshop 7 workshop 8 workshop 9 workshop 10



Our Quality Inspection

Quality Inspection 1 Quality Inspection 2 Quality Inspection 3 Quality Inspection 4 Quality Inspection 5
Quality Inspection 6 Quality Inspection 7 Quality Inspection 8 Quality Inspection 9 Quality Inspection 10



Logistics and Packaging



  1. Wooden Crates: Used for large, fragile crucibles to provide maximum protection.
  2. Carton Boxes: Suitable for smaller or less fragile items.
  3. Foam Filling: Ensures that products remain secure and undamaged during transportation.
  4. Waterproof and Moisture-Proof Packaging: For protection against environmental factors during transit.
  5. Custom Packaging: Available upon request for specialized shipments.
  6. International Standard Packaging: Compliant with global shipping regulations to ensure safe and secure delivery.

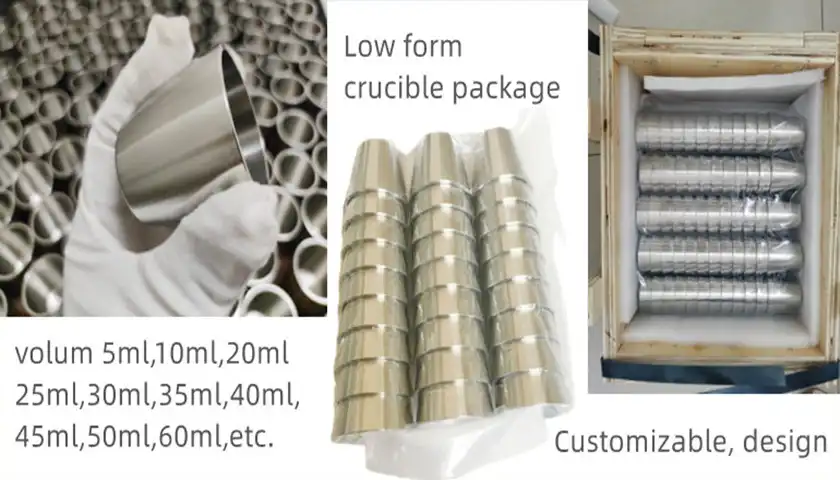

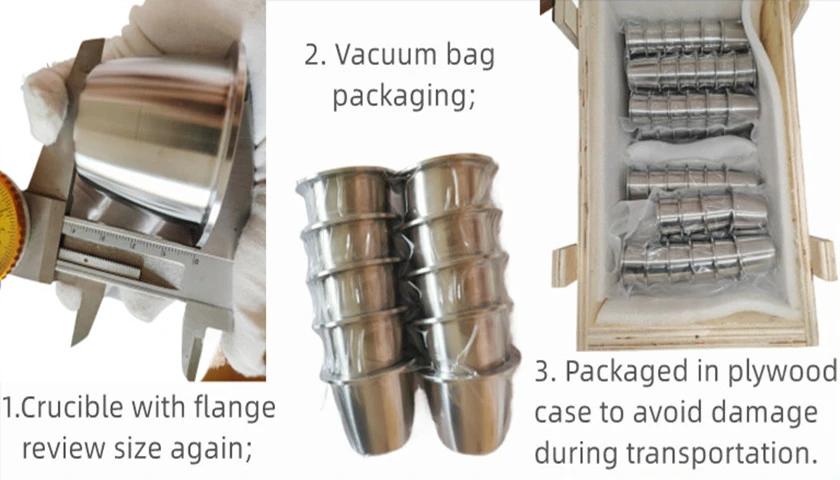

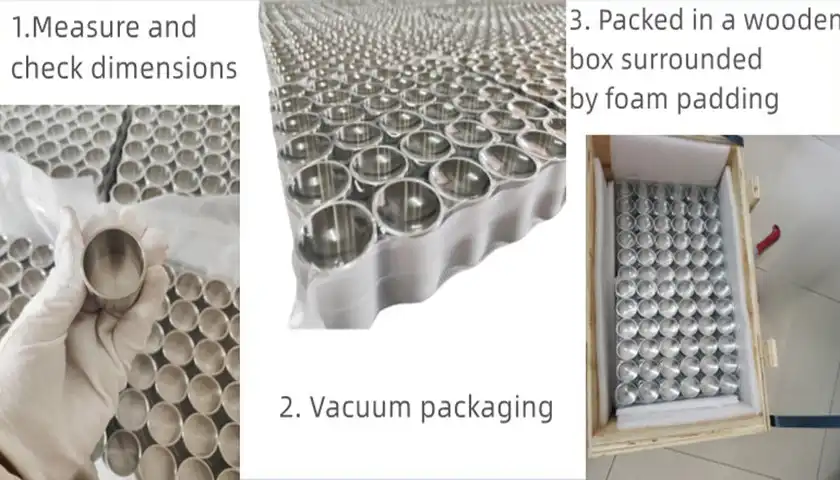

zirconium crucible package zirconium crucible package
zirconium crucible package zirconium crucible package



Shipping Options



  1. Sea Freight: Ideal for large orders or bulk shipments.
  2. Air Freight: For faster delivery of high-priority orders.
  3. Land Transport: Suitable for regional or cross-border deliveries.
  4. Multimodal Transport: Combining sea, air, and land transportation for optimized logistics.
  5. Courier Services: Fast and efficient door-to-door services for small packages.
shipping



Why Choose Us



  • Extensive Industry Experience: Over a decade of expertise in non-ferrous metal production and export.
  • Advanced Technology: Equipped with cutting-edge machinery to deliver precise and high-quality products.
  • Global Reach: Serving customers in over ten countries with a reliable supply chain and strong partnerships.
  • Customization: We offer OEM/ODM services to tailor products to your exact specifications.
  • ISO-Certified: Our commitment to quality is backed by ISO 9001 certification, ensuring compliance with international standards.
  • Competitive Pricing: We provide high-quality products at reasonable prices, ensuring value for our clients.

certificates

OEM/ODM Services


Shaanxi Peakrise Metal Co., Ltd. provides full OEM/ODM services, allowing customers to customize zirconium crucibles to their specific requirements. Whether it’s custom dimensions, surface finishes, or specialized coatings, we can accommodate your unique needs.

workshop workshop



FAQ



  1. What is the purity level of your zirconium crucibles?
    Our zirconium crucibles have a purity of 99.95% or higher, ensuring optimal performance in sensitive applications.

  2. Can I customize the dimensions of the zirconium crucibles?
    Yes, we offer full customization services for size, thickness, and shape based on your requirements.

  3. What industries are zirconium crucibles most suited for?
    They are primarily used in aerospace, nuclear energy, chemical processing, and metal refining.

  4. Do you offer global shipping?
    Yes, we ship our products worldwide through various logistic channels including sea, air, and courier services.

  5. How do you ensure the quality of your zirconium crucibles?
    Every product undergoes rigorous testing, including purity verification and physical property assessment, before shipment.
