How do TZM molybdenum alloy rods compare to other high-temperature alloys?

TZM molybdenum alloy rods stand out as exceptional materials for high-temperature applications, offering superior performance compared to many other high-temperature alloys. These rods exhibit remarkable strength retention at elevated temperatures, exceptional creep resistance, and outstanding thermal conductivity. Unlike some nickel-based superalloys or refractory metals, TZM molybdenum alloy rods maintain their structural integrity and mechanical properties even in extreme heat conditions. Their unique composition of molybdenum, titanium, and zirconium creates a synergistic effect, resulting in enhanced high-temperature stability and oxidation resistance. While other alloys may soften or deform under intense heat, TZM molybdenum alloy rods remain robust and reliable, making them ideal for critical components in aerospace, nuclear, and industrial applications where performance under extreme conditions is paramount.



Composition and Properties of TZM Molybdenum Alloy Rods



Chemical Composition and Microstructure



TZM molybdenum alloy rods are composed primarily of molybdenum, with small additions of titanium and zirconium. This unique composition results in a material with exceptional properties. The typical chemical makeup includes 99.2-99.4% molybdenum, 0.4-0.55% titanium, and 0.06-0.12% zirconium. These precise ratios create a microstructure that contributes to the alloy's superior performance in high-temperature environments.



The addition of titanium and zirconium to the molybdenum base serves multiple purposes. Titanium acts as a carbide former, enhancing the alloy's strength and creep resistance. Zirconium, on the other hand, helps in grain refinement and improves the material's ductility. The synergistic effect of these elements results in a fine-grained structure that maintains stability even at elevated temperatures.

Material	Density /g·cm-3	Melting Point /℃	Boiling Point/℃
TZM alloy (Ti0.5/Zr0.1)	10.22	2617	4612
Mo	10.29	2610	5560



Mechanical Properties





TZM alloy molybdenum rods exhibit remarkable mechanical properties that set them apart from other high-temperature materials. Their high tensile strength, typically ranging from 760 to 895 MPa at room temperature, is retained to a significant degree even at temperatures exceeding 1000°C. This strength retention is crucial for applications where structural integrity under extreme conditions is paramount.



The alloy's exceptional creep resistance is another standout feature. Creep, the tendency of a material to deform permanently under constant stress, is a significant concern in high-temperature applications. TZM molybdenum alloy rods demonstrate superior creep resistance compared to pure molybdenum and many other refractory metals, maintaining their shape and dimensions even under prolonged exposure to high temperatures and stresses.



Thermal Properties



The thermal properties of molybdenum TZM alloy rods make them particularly suitable for high-temperature applications. With a melting point of approximately 2,620°C, these rods can withstand extreme heat without losing their structural integrity. Their high thermal conductivity, about 138 W/m·K at room temperature, allows for efficient heat transfer in thermal management systems.



Moreover, TZM molybdenum alloy rods have a low coefficient of thermal expansion, typically around 5.2 × 10^-6/K. This property is crucial in applications where dimensional stability under varying temperatures is essential, such as in precision instruments or high-temperature furnace components.

Comparative Analysis with Other High-Temperature Alloys



TZM vs. Nickel-based Superalloys



When comparing TZM molybdenum alloy rods to nickel-based superalloys, several key differences emerge. Nickel-based superalloys, such as Inconel or Hastelloy, are widely used in high-temperature applications due to their excellent oxidation resistance and strength at elevated temperatures. However, TZM alloy molybdenum rods outperform these materials in several aspects.



Firstly, TZM rods have a significantly higher melting point (2,620°C) compared to most nickel-based superalloys (typically around 1,300-1,400°C). This higher melting point allows TZM rods to maintain their structural integrity at temperatures where nickel-based alloys would begin to soften or melt. Additionally, TZM rods exhibit superior strength retention at extreme temperatures. While nickel-based superalloys start to lose their strength rapidly above 1,000°C, TZM molybdenum alloy rods maintain a substantial portion of their strength even at 1,500°C and beyond.



TZM vs. Other Refractory Metals



TZM molybdenum alloy rods also show distinctive advantages when compared to other refractory metals like tungsten, tantalum, or niobium. While all these materials have high melting points and good strength at elevated temperatures, TZM rods offer a unique combination of properties that make them superior in many applications.



Compared to pure tungsten, TZM rods have better machinability and ductility, making them easier to form and work with. They also exhibit better strength retention at high temperatures than pure tungsten. When compared to tantalum and niobium, TZM rods have a higher melting point and better strength-to-weight ratio, making them more suitable for aerospace and nuclear applications where weight is a critical factor.



Performance in Specific High-Temperature Applications



The superior properties of TZM molybdenum alloy rods make them particularly well-suited for certain high-temperature applications. In aerospace, TZM rods are used in rocket nozzles and heat shields where their high strength and excellent heat resistance are crucial. In the nuclear industry, these rods find applications in reactor components and radiation shielding, benefiting from their high melting point and low neutron absorption cross-section.



In industrial furnaces and high-temperature processing equipment, TZM alloy molybdenum rods outperform many other materials. Their excellent creep resistance and dimensional stability at high temperatures make them ideal for furnace supports, heating elements, and hot-zone components. In these applications, TZM rods often outperform nickel-based superalloys and other refractory metals, offering longer service life and better performance under extreme conditions.





Applications and Future Trends for TZM Molybdenum Alloy Rods Current Industrial Applications



Molybdenum TZM alloy rods have found widespread use across various industries due to their exceptional high-temperature properties. In the aerospace sector, these rods are integral components in rocket propulsion systems, where they withstand the extreme heat and stress of combustion chambers and nozzles. The nuclear industry relies on TZM rods for reactor components, fuel rod supports, and radiation shielding, taking advantage of their high melting point and radiation resistance.



In the field of high-temperature furnaces and processing equipment, TZM alloy molybdenum rods are used for heating elements, furnace supports, and hot-zone components. Their excellent creep resistance and dimensional stability at elevated temperatures make them ideal for these applications. The semiconductor industry also utilizes these rods in the production of high-purity silicon, where their high thermal conductivity and low contamination risk are crucial.



Moreover, TZM molybdenum alloy rods play a vital role in the manufacturing of specialized glass and ceramics. Their high strength at elevated temperatures and resistance to molten glass make them perfect for stirrers, electrodes, and other components used in glass melting processes.



Emerging Technologies and Future Applications



As technology advances, new applications for TZM molybdenum alloy rods are continually emerging. In the field of fusion energy, these rods are being considered for use in plasma-facing components due to their high heat flux handling capability and low neutron activation. The growing interest in hypersonic flight is also opening up new opportunities for TZM rods, as they can withstand the extreme temperatures generated by air friction at hypersonic speeds.



In the realm of additive manufacturing, research is underway to develop 3D printing techniques for TZM alloys. This could potentially allow for the creation of complex geometric structures with the superior high-temperature properties of TZM, opening up new design possibilities in aerospace and other high-tech industries.



The push towards more efficient and higher temperature turbine engines in both aerospace and power generation sectors is also likely to increase the demand for TZM molybdenum alloy rods. Their ability to maintain strength and resist creep at temperatures beyond the capabilities of current superalloys makes them promising candidates for next-generation turbine components.



Challenges and Future Research Directions



Despite their numerous advantages, TZM molybdenum alloy rods face certain challenges that are the focus of ongoing research. One of the primary issues is their susceptibility to oxidation at high temperatures in air. Current research is exploring various coatings and surface treatments to improve the oxidation resistance of TZM rods without compromising their other beneficial properties.



Another area of research is the development of processing techniques to further enhance the mechanical properties of TZM alloys. This includes exploring new alloying elements or optimizing the existing composition to improve strength, ductility, and creep resistance at even higher temperatures.



Sustainability is also becoming an increasingly important consideration. Research is being conducted on recycling and reprocessing methods for TZM alloys to reduce the environmental impact of their production and use. Additionally, efforts are being made to optimize the production processes to reduce energy consumption and minimize waste.



Conclusion



TZM molybdenum alloy rods stand out as exceptional materials for high-temperature applications, offering a unique combination of properties that often surpass those of other high-temperature alloys. Their superior strength retention, exceptional creep resistance, and high melting point make them invaluable in aerospace, nuclear, and industrial settings. While they face challenges such as oxidation resistance, ongoing research and development are addressing these issues and expanding their potential applications. As we push the boundaries of technology in extreme environments, TZM molybdenum alloy rods will undoubtedly continue to play a crucial role in enabling new advancements and innovations.

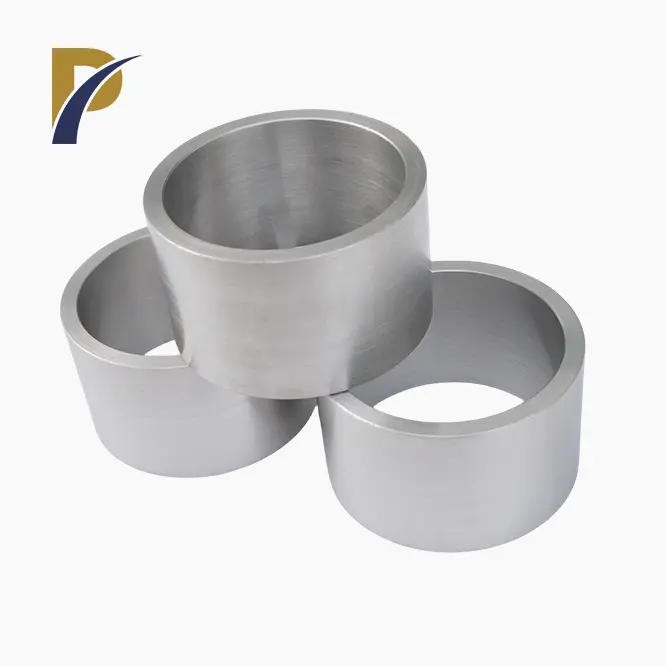

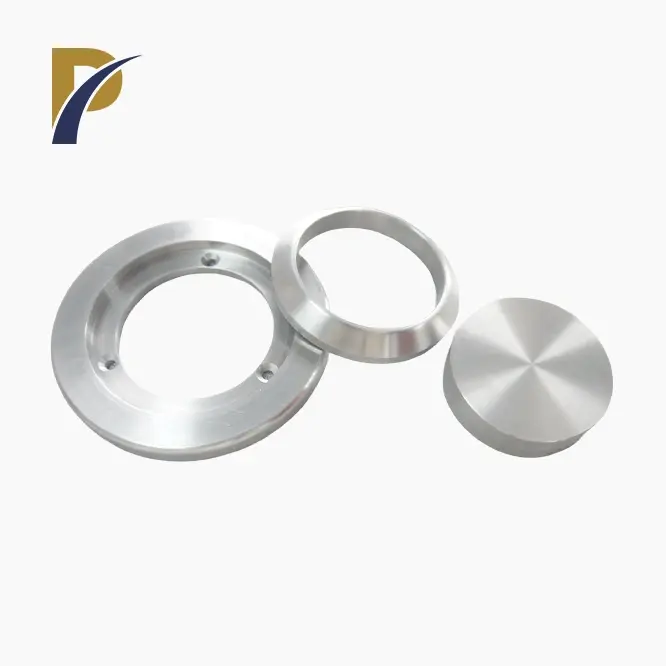

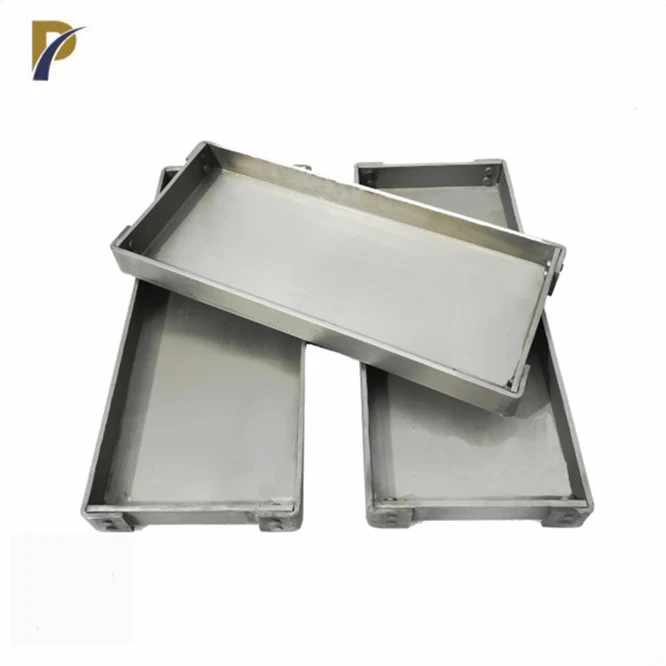

Products Produced By Shaanxi Peakrise Metal Co.,Ltd
