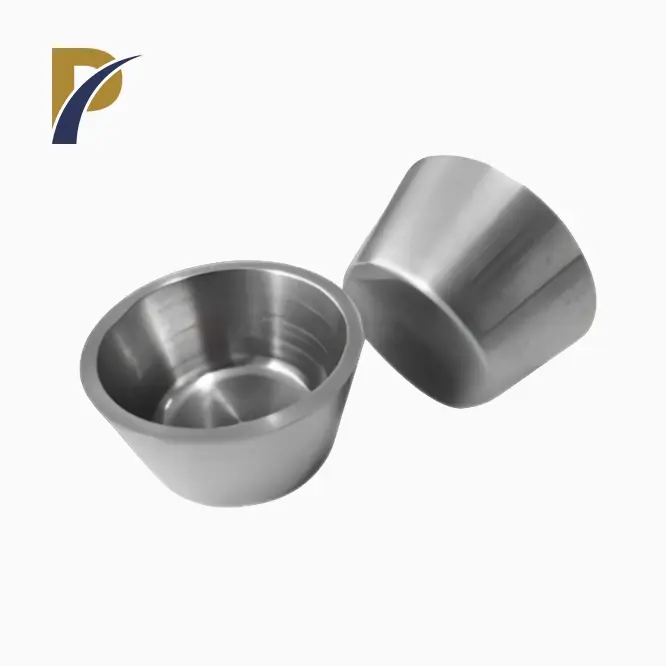

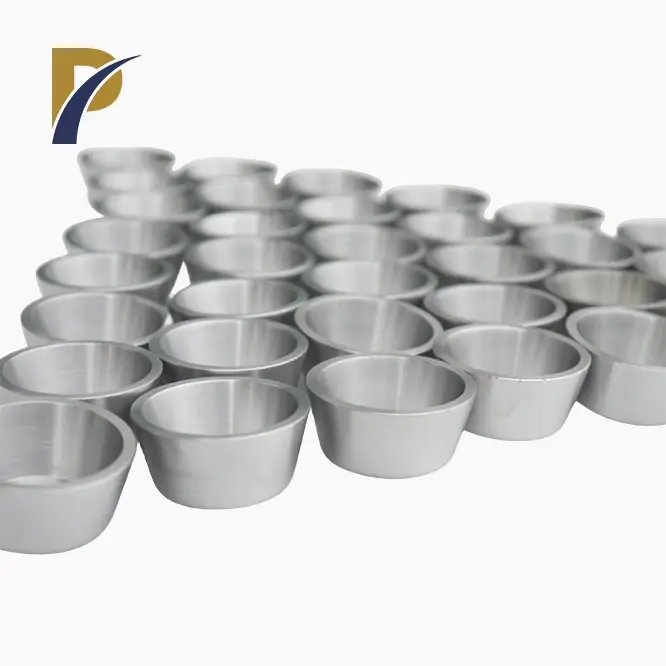

What temperatures can molybdenum crucibles withstand in UHV evaporators?
Because of their ability to tolerate extremely high temperatures, molybdenum crucibles used in ultra-high vacuum (UHV) evaporators are perfect for sophisticated thin film deposition procedures. In UHV settings, these molybdenum crucible UHV evaporators normally run between 1500°C and 2200°C (2732°F and 3992°F). The specific design of the crucible, the working circumstances inside the UHV chamber, and the molybdenum's purity all affect the precise temperature limit. Molybdenum's high melting point of about 2623°C (4753°F) enables it to retain chemical stability and structural integrity at these extremely high temperatures, guaranteeing dependable and consistent performance in crucial applications like the development of nanotechnology, materials science research, and semiconductor manufacturing.
Properties of Molybdenum Crucibles in UHV Environments
Thermal Characteristics of Molybdenum
Molybdenum possesses exceptional thermal properties that make it an outstanding material for crucibles in UHV evaporators. Its high melting point, low vapor pressure, and excellent thermal conductivity contribute to its superior performance in high-temperature applications. The thermal expansion coefficient of molybdenum is relatively low, which helps maintain dimensional stability during heating and cooling cycles. This stability is crucial for precise control of evaporation rates and film thickness in semiconductor and nanotechnology processes.
Chemical Stability at Elevated Temperatures
One of the key advantages of molybdenum crucible UHV evaporator in UHV systems is their remarkable chemical stability at high temperatures. Molybdenum resists reaction with many evaporant materials, maintaining the purity of the deposited films. This inertness is particularly valuable when working with reactive metals or compounds that might otherwise contaminate the evaporation source. The stability of molybdenum also contributes to longer crucible lifespans, reducing downtime and maintenance costs in industrial applications.
Structural Integrity Under Vacuum Conditions
The combination of high-temperature resistance and mechanical strength makes molybdenum crucibles ideal for use in UHV environments. The metal's ability to maintain its structural integrity under extreme conditions prevents deformation or failure during operation. This reliability is essential for consistent film deposition and reproducible results in research and manufacturing settings. The robust nature of molybdenum crucibles also allows for the use of larger batch sizes, improving efficiency in production environments.
Applications of Molybdenum Crucibles in UHV Evaporators
Semiconductor Device Fabrication
The manufacturing of sophisticated microchips and electronic components in the semiconductor industry depends heavily on molybdenum crucibles. These crucibles' capacity to reach high temperatures makes it possible to precisely deposit a variety of materials, such as metals and dielectrics, onto semiconductor wafers. Achieving consistent evaporation rates and steady temperatures helps produce high-quality thin films with particular electrical and optical characteristics. For the production of advanced integrated circuits and other semiconductor devices, this degree of control is necessary.
Advanced Materials Research
Materials science laboratories rely on molybdenum crucibles in UHV evaporators to explore novel materials and coatings. The extreme temperatures achievable with these UHV molybdenum crucibles allow researchers to investigate the properties of high-melting-point materials and create unique composite structures. The chemical inertness of molybdenum also facilitates the study of reactive materials without crucible contamination, leading to more accurate experimental results and the development of innovative materials for various applications.
Nanotechnology and Thin Film Development
The area of nanotechnology benefits significantly from the accuracy and security presented by molybdenum pots in UHV evaporation systems. The composition and thickness of nanostructures and ultra-thin films can be precisely controlled with these crucibles. For the production of quantum dots, nanowires, and other nanostructures with particular optical, electronic, or magnetic properties, it is essential to be able to maintain consistent evaporation conditions at high temperatures. Advancements in technologies like quantum computing, advanced sensors, and energy-efficient devices necessitate this level of control.
 |
 |
Optimizing Performance of Molybdenum Crucibles in UHV Systems
Temperature Control and Monitoring
Achieving optimal performance from molybdenum crucibles in UHV evaporators requires precise temperature control and monitoring. Advanced temperature sensors, such as optical pyrometers or thermocouples, are often employed to accurately measure and regulate crucible temperatures. Sophisticated power control systems allow for fine-tuning of the heating process, ensuring stable and repeatable evaporation conditions. Proper temperature management not only enhances the quality of deposited films but also extends the lifespan of the UHV molybdenum crucibles by preventing overheating and potential structural damage.
Crucible Design and Material Purity
In UHV evaporators, the performance of molybdenum crucibles is significantly influenced by their design. Heat distribution and evaporation characteristics can be affected by wall thickness, shape, and surface finish. Molybdenum with a high purity level is essential for minimizing contamination and maximizing temperature resistance. Crucibles made of zone-refined molybdenum or molybdenum alloys designed for specific applications are available from some manufacturers. These crucibles have better performance and last longer in extreme UHV environments.
Maintenance and Handling Practices
Molybdenum crucibles must be handled and maintained properly in order to ensure their long-term performance in UHV systems. It is essential to conduct regular checks for signs of wear, deformation, or contamination. In order to avoid introducing impurities that could affect the quality of evaporation, cleaning procedures must be carefully followed. Utilizing clean tools and gloves, among other safe storage and handling practices, helps to preserve the crucible's integrity and prevent contamination between uses. Molybdenum crucibles can have a much longer useful life and be more reliable as a whole if a planned maintenance schedule and best practices are followed.
Conclusion
Molybdenum crucibles demonstrate remarkable temperature resistance in UHV evaporators, typically withstanding temperatures from 1500°C to 2200°C. Their exceptional thermal properties, chemical stability, and structural integrity make them invaluable in semiconductor manufacturing, materials science, and nanotechnology. By optimizing temperature control, crucible design, and maintenance practices, researchers and manufacturers can fully leverage the capabilities of molybdenum crucible UHV evaporator to achieve precise thin film deposition and advance technological innovations across various fields.
Contact Us
For more information about our high-quality molybdenum crucibles for UHV evaporators and other specialized applications, please contact Shaanxi Peakrise Metal Co., Ltd. at info@peakrisemetal.com. Our team of experts is ready to assist you in finding the perfect solution for your advanced material processing needs.
