The Science Behind Molybdenum Plate Rolling
Crystalline Structure and Deformation
The body-centered cubic (BCC) crystal structure of molybdenum is crucial to its rolling deformation behavior. The final properties of the plate are affected by the movement of dislocations within the crystal lattice, which varies with temperature. Low-temperature rolling causes strain hardening and residual stresses, whereas high-temperature rolling usually causes dynamic recrystallization.
Thermomechanical Processing
Temperature, strain rate, and degree of deformation must be carefully balanced when processing molybdenum plates thermomechanically. Grain size, texture development, and microstructure evolution are all influenced by these factors taken together. To achieve the desired plate characteristics and optimize the rolling process, it is essential to comprehend these interactions.
Phase Transformations
The rolling temperature can still impact the microstructure of molybdenum through recovery and recrystallization processes, even though it doesn't go through phase transformations like some other metals do. The ultimate mechanical characteristics and performance of the plate can be greatly impacted by these temperature-dependent phenomena.

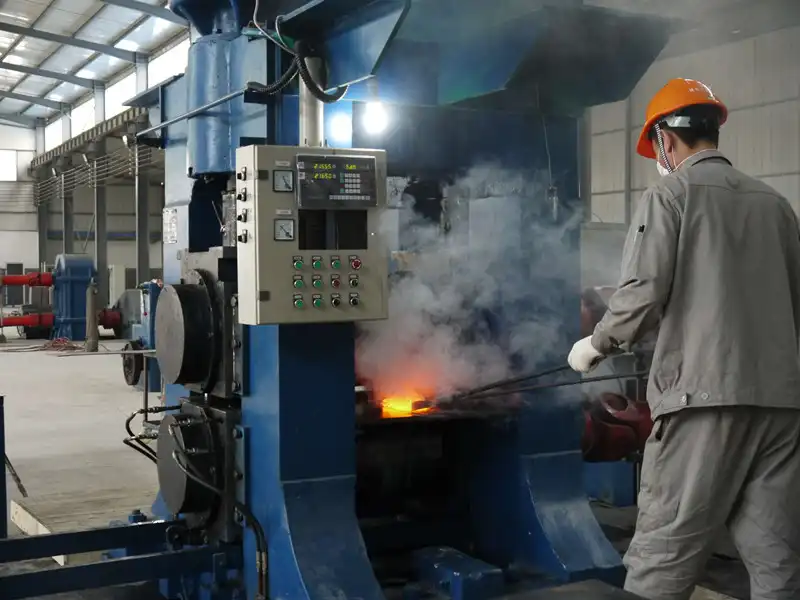

High-Temperature Rolling of Molybdenum Plates
Advantages of Elevated Temperature Processing
There are various benefits to rolling molybdenum plates at high temperatures, usually above 1000°C. The increased temperature makes the material more pliable and deformable by lowering its flow stress. Improved surface finish and a larger thickness reduction per pass are made possible by this increased workability. Furthermore, dynamic recrystallization is encouraged by high-temperature rolling, which gives the finished product a more homogeneous grain structure and increased ductility.
Challenges in High-Temperature Rolling
High-temperature rolling has advantages, but it also has drawbacks. The higher temperatures raise the possibility of oxidation, so during processing, protective atmospheres or vacuum conditions are required. Additionally, the high temperatures may cause rolling equipment to wear down more quickly, necessitating more frequent maintenance and possibly causing production delays. To avoid undesirable microstructural alterations, post-rolling cooling rates must be carefully regulated.
Microstructural Evolution at High Temperatures
Molybdenum plates experience substantial microstructural alterations when they are rolled at high temperatures. As a result of dynamic recrystallization, new, strain-free grains are created. The overall mechanical properties of the plate may be enhanced by this process, which also helps to refine the grain structure. However, excessive grain growth could happen if the temperature is too high or the rate of cooling is too slow, which could weaken and soften the plate.
 |
 |
Low-Temperature Rolling of Molybdenum Plates
Benefits of Cold Rolling
Molybdenum plates can be rolled cold or at low temperatures, usually below 300°C, which has several benefits. The process increases the strength and hardness of the plate by inducing significant work hardening. Better surface finish and more precise dimensional control are also made possible by cold rolling. Additionally, the lower processing temperatures minimize oxidation issues and save energy consumption, which makes it a desirable choice for some applications.
Limitations and Considerations
Although cold rolling has advantages, there are drawbacks as well. Large thickness reductions without the need for intermediate annealing steps are difficult to accomplish due to molybdenum's high strength and low ductility at room temperature. Processing expenses and time may rise as a result. Furthermore, residual stresses and anisotropy may be introduced into the material due to the extreme plastic deformation that occurs during cold rolling, which may not be desirable for some applications.
Texture Development in Cold-Rolled Molybdenum
Strong crystallographic texture is developed when molybdenum plates are rolled at low temperatures. Strength, ductility, and thermal conductivity are just a few of the mechanical and physical characteristics of the plate that can be strongly impacted by this preferred grain orientation. Customizing molybdenum plates to meet the needs of particular applications requires an understanding of and ability to regulate texture development.
Comparative Analysis: High vs. Low Rolling Temperatures
Mechanical Properties
The mechanical characteristics of molybdenum plates are significantly impacted by the decision between high and low rolling temperatures. Because of dynamic recrystallization, high-temperature rolling typically results in plates with greater ductility and more isotropic qualities. Low-temperature rolling, on the other hand, produces plates that are harder and stronger but may be less ductile. The choice is based on the desired balance of properties and the particular application requirements.
Microstructural Characteristics
Between high and low rolling temperatures, there are notable differences in the microstructure of molybdenum plates. The grain structure of high-temperature rolled plates is generally more equiaxed and has a lower dislocation density. Conversely, low-temperature rolled plates exhibit longer grains, a greater density of dislocations, and possibly a more noticeable texture. The performance of the plate in different applications is directly impacted by these microstructural variations.
Production Efficiency and Cost Considerations
Costs and production efficiency are also impacted by the rolling temperature. Greater thickness reductions per pass are frequently possible with high-temperature rolling, which may minimize the number of rolling cycles needed. But it requires protective environments and specialized equipment, which raises the cost of capital and operations. Low-temperature rolling can be done with less complicated equipment and with less energy, but it might involve more passes and intermediate annealing steps. Economic considerations, infrastructure availability, and production volume all influence the best option.
Applications and Industry-Specific Considerations
Aerospace and Defense
Molybdenum plates are valued for their exceptional high-temperature performance and high strength-to-weight ratio in aerospace and defense applications. Because of their enhanced ductility and isotropy—two qualities that are essential for components exposed to complex stress states—high-temperature rolled plates are frequently chosen. Nonetheless, applications needing maximum strength and dimensional accuracy might employ cold-rolled plates.
Electronics and Semiconductor Industry
Molybdenum plates are used in a variety of semiconductor and electronics applications, such as sputtering targets and heat sinks. The material's homogeneity and purity are crucial in these domains. While cold rolling might be the better option for applications needing high strength and superior surface finish, like thin film production, high-temperature rolling can aid in achieving a more uniform microstructure.
Energy and Nuclear Sectors
Molybdenum plates are used in nuclear and energy applications, where they must endure harsh environments and high temperatures. The particular needs of each application determine whether to use high or low rolling temperatures. Cold-rolled plates might be used in components needing high strength and radiation resistance, while high-temperature rolled plates might be chosen for their enhanced creep resistance.
 |
 |
Future Trends and Innovations
Advanced Rolling Techniques
Advanced rolling techniques are being developed in the field of producing molybdenum plates. Among these are multi-pass rolling techniques that maximize property combinations by combining high and low temperature stages. More accurate control of temperature and deformation parameters is made possible by advancements in rolling mill design and control systems, which improves the consistency and quality of the final product.
Tailored Microstructures for Specific Applications
The development of rolling techniques that can yield molybdenum plates with specialized microstructures for particular uses is still being researched. To achieve the desired combinations of grain size, texture, and dislocation structures, temperature, strain rate, and degree of deformation must be carefully controlled. These developments could broaden the range of high-tech industries' use of molybdenum plates.
Computational Modeling and Process Optimization
The manufacturing of molybdenum plates is being revolutionized by the incorporation of computational modeling and simulation tools. Process parameter optimization is made possible by advanced models that can forecast microstructural evolution and property development during rolling. This method speeds up the creation of new molybdenum plate grades with improved qualities and lessens the need for expensive trial-and-error testing.
Conclusion
The production of molybdenum plates involves a difficult choice between high and low rolling temperatures, which has a significant effect on the material's characteristics and functionality. Each strategy has unique benefits and drawbacks that call for careful evaluation of the demands of the particular application, production capacity, and financial considerations. Exciting advancements in molybdenum plate applications across a range of high-tech industries are anticipated as technology develops and makes it possible to optimize rolling processes and achieve ideal property combinations.
