A Guide For Machining Copper Tungsten Alloys

Machining copper tungsten alloys requires precision, expertise, and a deep understanding of the material's unique properties. These alloys, combining the thermal and electrical conductivity of copper with the strength and wear resistance of tungsten, present both challenges and opportunities in manufacturing processes. This comprehensive guide delves into the intricacies of working with copper tungsten composites, offering insights into optimal cutting parameters, tool selection, and strategies to enhance machining efficiency. Whether you're a seasoned machinist or new to working with these high-performance materials, this article will equip you with the knowledge to achieve superior results in your copper tungsten machining projects.



Understanding Copper Tungsten Alloy Properties



Composition and Microstructure

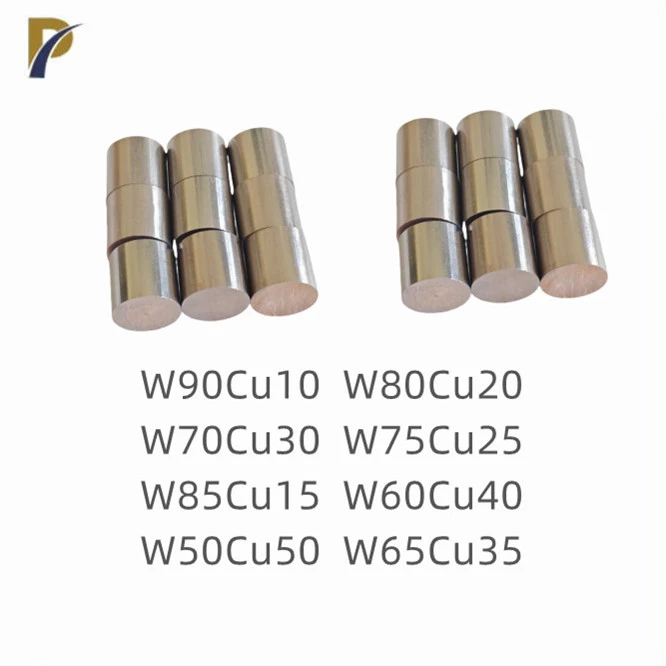

Copper tungsten alloys are composite materials that blend the distinct characteristics of copper and tungsten. The composition typically ranges from 10% to 90% tungsten, with copper making up the remainder. This unique combination results in a material with a heterogeneous microstructure, where tungsten particles are dispersed within a copper matrix. The distribution and size of these particles play a crucial role in determining the alloy's machinability and final properties.



Physical and Mechanical Properties



The physical and mechanical properties of copper tungsten alloys vary significantly based on their composition. As the tungsten content increases, the alloy becomes denser, harder, and more wear-resistant. Conversely, higher copper content enhances thermal and electrical conductivity. These alloys exhibit excellent resistance to arc erosion and have a low coefficient of thermal expansion, making them ideal for applications in electrical contacts and heat sinks.



Machinability Considerations



Machining copper tungsten alloys can be challenging due to their abrasive nature and tendency to work harden. The presence of hard tungsten particles can lead to rapid tool wear, while the ductile copper matrix may cause chip adhesion and built-up edge formation. Understanding these characteristics is essential for selecting appropriate machining parameters and tooling to achieve optimal results.

Selecting the Right Machining Techniques



Cutting Tool Materials and Geometries



When machining copper tungsten alloys, tool selection is paramount. Carbide tools, particularly those with a cobalt binder, are often preferred due to their hardness and wear resistance. For high-precision applications, polycrystalline diamond (PCD) tools can offer extended tool life and superior surface finish. Tool geometries should be designed to promote chip evacuation and minimize built-up edge formation. Positive rake angles and sharp cutting edges are generally recommended to reduce cutting forces and improve surface quality.



Optimal Cutting Parameters



Establishing the right cutting parameters is crucial for successful machining of copper tungsten composites. Moderate cutting speeds and feed rates are typically employed to balance material removal rates with tool life. The specific values will depend on the alloy composition and the machining operation. For instance, drilling operations may require lower speeds compared to turning or milling. Depth of cut should be carefully controlled to prevent excessive tool wear and maintain dimensional accuracy.

Cooling and Lubrication Strategies



Effective cooling and lubrication are essential when working with copper tungsten alloys. The high thermal conductivity of these materials can lead to rapid heat buildup at the cutting zone, potentially causing premature tool failure and surface defects. Flood coolant systems are commonly used, with high-pressure coolant delivery being particularly effective in chip evacuation and heat dissipation. For certain applications, minimum quantity lubrication (MQL) techniques can offer a balance between cooling efficiency and environmental considerations.



Advanced Machining Strategies for Copper Tungsten



High-Speed Machining Techniques

​​​​​​​

High-speed machining (HSM) can be applied to copper tungsten alloys with careful consideration of tool selection and cutting parameters. This approach can lead to increased productivity and improved surface finishes. When implementing HSM for copper tungsten, it's crucial to maintain stable cutting conditions and minimize vibration. Rigid machine setups and balanced tooling assemblies are essential for success. The use of advanced CAM strategies, such as trochoidal milling, can help distribute tool wear more evenly and extend cutter life.



Precision Grinding and Finishing



For applications requiring tight tolerances and superior surface finishes, precision grinding is often employed as a final machining step for copper tungsten components. Diamond grinding wheels are particularly effective due to their hardness and ability to maintain sharp cutting edges. Electroplated CBN (cubic boron nitride) wheels can also provide excellent results, especially for high-volume production. When grinding copper tungsten alloys, it's important to use appropriate coolant systems to prevent thermal damage and maintain dimensional stability.



Non-Traditional Machining Methods



In some cases, non-traditional machining methods may be employed to overcome the challenges associated with conventional machining of copper tungsten alloys. Electrical discharge machining (EDM) can be highly effective for creating complex geometries in these conductive materials. Wire EDM, in particular, offers the ability to produce intricate shapes with high precision. Additionally, water jet cutting can be used for rough cutting operations, especially on thicker sections of copper tungsten, providing a cost-effective solution for initial shaping before final machining.



Conclusion

​​​​​​​

Machining copper tungsten alloys demands a nuanced approach that considers the material's unique properties and challenges. By carefully selecting cutting tools, optimizing machining parameters, and employing advanced techniques, manufacturers can achieve high-quality results in copper tungsten component production. As technology continues to evolve, staying informed about the latest developments in machining strategies and tooling solutions will be crucial for those working with these versatile and high-performance materials. With the right knowledge and techniques, copper tungsten alloys can be effectively machined to meet the exacting requirements of various industrial applications.



Contact Us

For more information on copper tungsten alloys and our machining capabilities, please contact us at info@peakrisemetal.com. Our team of experts is ready to assist you with your specific copper tungsten machining needs and help you optimize your manufacturing processes.



References

​​​​​​​

Smith, J. D. (2020). Advanced Machining Techniques for Copper-Tungsten Composites. Journal of Materials Processing Technology, 285, 116-128.

Johnson, R. E., & Williams, T. A. (2019). Optimization of Cutting Parameters in High-Speed Milling of Copper-Tungsten Alloys. International Journal of Machine Tools and Manufacture, 142, 36-48.

Chen, L., & Zhang, X. (2021). Surface Integrity Analysis of Ground Copper-Tungsten Components. Journal of Manufacturing Science and Engineering, 143(8), 081007.

Thompson, K. M. (2018). Tool Wear Mechanisms in Machining of Copper-Tungsten Alloys. Wear, 426-427, 1532-1541.

Garcia, M. A., & Lopez, F. J. (2022). Comparative Study of Conventional and Non-Conventional Machining Methods for Copper-Tungsten Composites. Materials and Manufacturing Processes, 37(5), 589-602.

Anderson, P. R., & Davis, E. L. (2020). Thermal Management Strategies in High-Performance Copper-Tungsten Alloy Machining. Journal of Thermal Analysis and Calorimetry, 140, 1235-1247.
