High-Temperature Zirconium Foil

Certification:ISO9001
Model Number:Custom
Minimum Order Quantity:1pc
Price:Negotiate
Packaging Details:Plywood case
Delivery Time:5~7days
Payment Terms:T/T
Supply Ability:50ton/month
Send Inquiry Download

PRODUCT DESCRIPTION

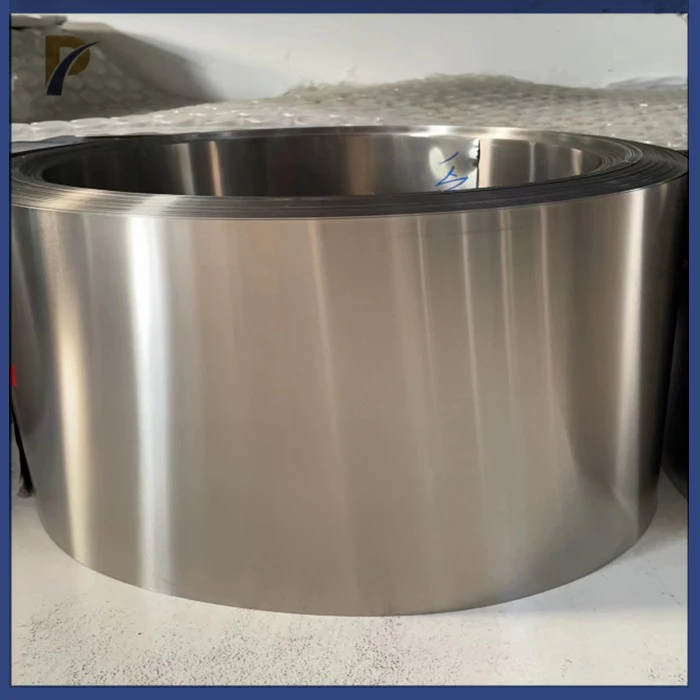

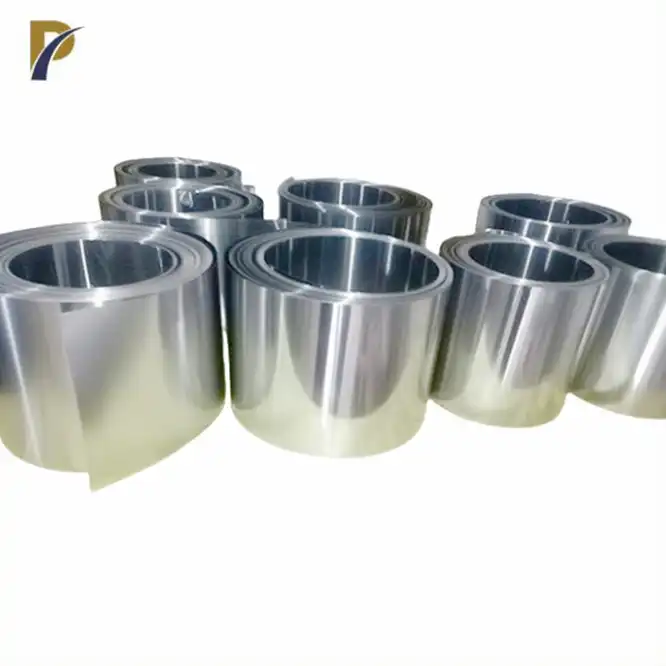

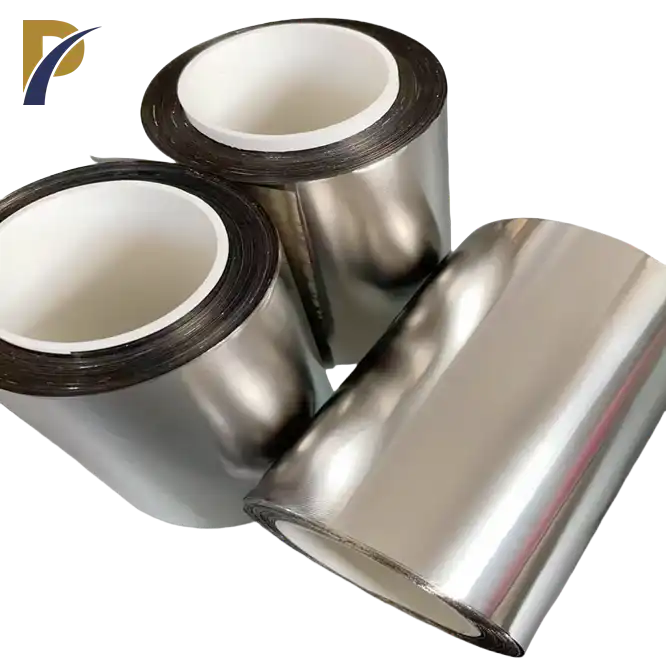

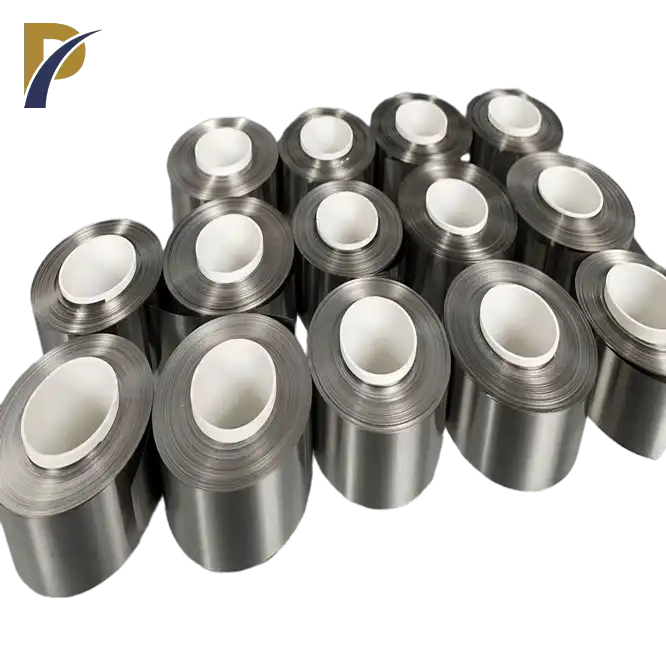

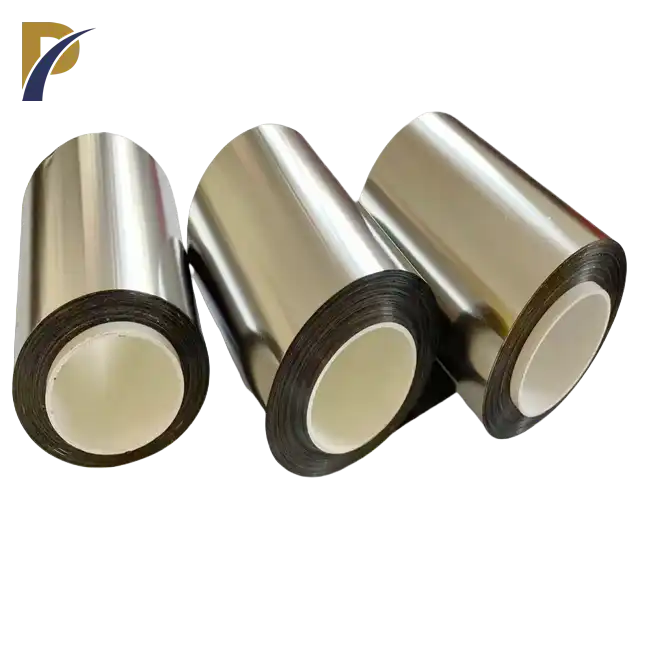

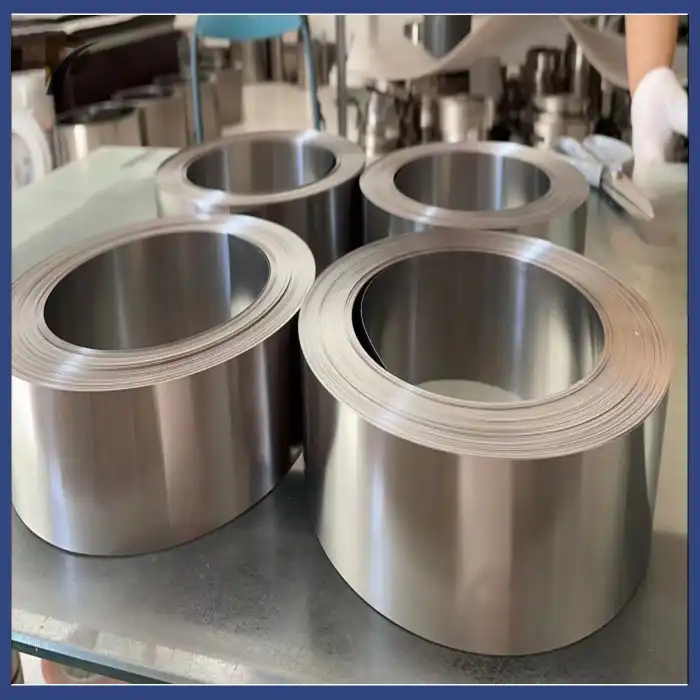

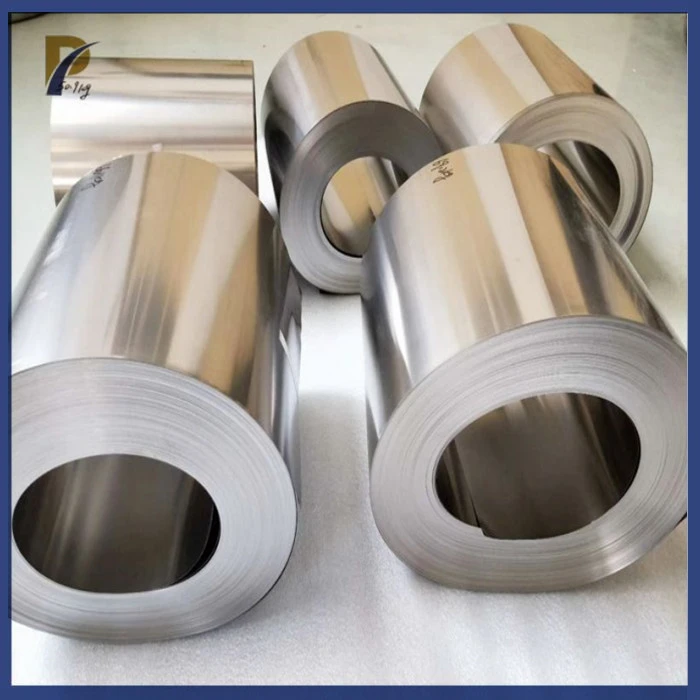

High-Temperature Zirconium Foil - Precision Performance at Elevated Temperatures



Introduction:

High-Temperature Zirconium Foil is a critical material in industries that require exceptional performance in extreme thermal environments. Known for its excellent heat resistance, corrosion resistance, and strength, zirconium foil is commonly used in applications like nuclear reactors, high-temperature furnaces, and chemical processing equipment. The foil’s ability to maintain structural integrity under intense heat makes it an indispensable material in the production of advanced technologies.

As a global supplier of High-Temperature Zirconium Foil, Shaanxi Peakrise Metal Co., Ltd. stands at the forefront of the non-ferrous metals industry, offering superior quality zirconium products tailored to meet the needs of demanding industries. We pride ourselves on providing high-quality materials that meet the stringent requirements of our customers, backed by a strong commitment to precision manufacturing and exceptional service.

Our High-Temperature Zirconium Foil is available in various thicknesses and widths, fully customizable to meet specific requirements, and manufactured to the highest industry standards. Whether you need zirconium foil for laboratory experiments, industrial production, or any other high-temperature application, Peakrise Metal is your trusted partner.



Product Specifications:

Product Name Zirconium Strip/ Zirconium Foil Bright Surface Cold Rolled Zr2 Zr4 Zr702 Zirconium Strip For Industry 0
Grade Zr2 Zr4 Zr702 Zr705 Zr60001 Zr60804 Zr60901
Purity >99.7%
Width <600mm
Thickness min.0.01mm
Surface Bright
Process Cold rolled
Standard ASTM B551 ASTM B352
Shape Coil or Flat
Delivery status Annealed
Cutom size Yes, can accept OEM
Bright Surface Zirconium Foil Zr2 Zirconium Strip Cold Rolled Zirconium Strip



Chemical Composition:

Grade Element composition(%)< Standard
Zr+Hf Hf Fe+Cr Sn H N C Nb O
R60702 99.2 4.5 0.20 -- 0.005 0.025 0.05 -- 0.16 ASTM B551
R60703 98 4.5 -- -- --0.005 0.025 -- -- --
R60704 97.5 4.5 0.20~0.40 1.0~2.0 0.005 0.025 0.05 -- 0.18
R60705 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18
R60706 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18



Physical Properties:

Standard Grade Status Rm(≥)/MPa Rp0.2(≥)/MPa A51mm(≥)/%
ASTM B551 Zr sheet/strip thickness ≤25mm

R60702

R60704

R60705

R60706

Annealed

379

413

552

510

207

241

379

345

16

14

16

20

ASTM B658 Zr seamless tube/welding pipe

R60702

R60704

R60705

Annealed

379

413

552

207

241

379

16

14

16

ASTM B523 Zr seamless & welding heat exchange tube

R60702

R60704

R60705

Annealed

379

413

552

207

241

379

16

14

16

ASTM B550 Zr rod/wire

R60702

R60704

R60705

Annealed

379

413

552

207

241

379

16

14

16

ASTM B493 Zr Forging

R60702

R60704

R60705

Annealed

379

413

483

207

241

379

16

14

16



Features of High-Temperature Zirconium Foil:

  1. Excellent Heat Resistance
    High-Temperature Zirconium Foil maintains its stability and performance even at temperatures exceeding 1000°C, making it ideal for high-heat environments such as reactors and furnaces.

  2. Superior Corrosion Resistance
    Zirconium exhibits remarkable corrosion resistance in aggressive chemical environments, including strong acids and alkalis, ensuring long-lasting durability in harsh conditions.

  3. High Strength-to-Weight Ratio
    Despite being lightweight, zirconium foil has a high tensile strength, ensuring it can withstand mechanical stresses and maintain structural integrity in industrial applications.

  4. Flexibility and Customizability
    Zirconium foil can be manufactured in various thicknesses and sizes, providing flexibility for specific applications like thin-film deposition, heat shields, and thermal barriers.

  5. Biocompatibility
    Zirconium is also biocompatible, which makes it suitable for medical applications, particularly in devices that must endure sterilization and exposure to body fluids without degrading.



Applications of High-Temperature Zirconium Foil:

- Zirconium foil is widely used in the nuclear industry and aerospace as it has a low neutron cross-section and can be used as a structural material in nuclear reactors.


- Zirconium alloys foil are also important materials for manufacturing nuclear fuel rods because they provide good stability in high-temperature and high-pressure environments.


- Zirconium foil is also used to manufacture corrosion-resistant equipment, such as chemical containers, petrochemical equipment, etc.


- Zirconium strip also has applications in manufacturing aerospace components, automotive parts and other high-strength structural materials.



Manufacturing Process of High-Temperature Zirconium Foil:

Our zirconium foil is manufactured through a meticulous process involving melting, rolling, annealing, and precision cutting. The raw zirconium undergoes vacuum arc melting to ensure purity, followed by controlled rolling to achieve the desired thickness. After rolling, the foil is annealed in a vacuum furnace to relieve internal stresses, ensuring smooth surface quality and excellent mechanical properties. Final cutting and inspection ensure that every piece of zirconium foil meets our high standards.



workshop 1 workshop 2 workshop 3 workshop 4 workshop 5
workshop 6 workshop 7 workshop 8 workshop 9 workshop 10



Our Quality Inspection

Quality Inspection 1 Quality Inspection 2 Quality Inspection 3 Quality Inspection 4 Quality Inspection 5
Quality Inspection 6 Quality Inspection 7 Quality Inspection 8 Quality Inspection 9 Quality Inspection 10



Why Choose Shaanxi Peakrise Metal Co., Ltd.?

  1. Rich Industry Experience
    With over a decade of experience in non-ferrous metal production and export, we have developed deep expertise in manufacturing high-quality zirconium products, including foils, sheets, rods, and wires.

  2. Comprehensive Manufacturing Capabilities
    Our state-of-the-art equipment and facilities allow us to produce a wide range of zirconium products tailored to meet the specific needs of our clients. From small custom orders to large-scale production, we have the capacity to deliver.

  3. Commitment to Quality
    Quality is our top priority. Every batch of zirconium foil undergoes rigorous testing to ensure it meets industry standards and exceeds customer expectations.

  4. Global Reach
    Our products are trusted by clients across the globe, with long-term partnerships in countries such as the USA, Germany, South Korea, and Australia. We have a proven track record of delivering reliable materials on time.

  5. Customization and OEM Services
    We offer OEM services and customization to meet the specific requirements of your projects, including bespoke dimensions, packaging, and delivery schedules.



Packaging Options:

  • Wooden crate packaging for extra protection during transportation.
  • Foam-filled boxes to prevent damage during shipping.
  • Waterproof and moisture-proof packaging to ensure product integrity.
  • Custom packaging options available to meet specific requirements.



Logistics:

  • Ocean freight for bulk shipments.
  • Air freight for expedited delivery.
  • Land transportation for regional deliveries.
  • Multimodal transport solutions for complex supply chains.
  • Express courier services for urgent orders.



package 1 package 2 package 3 package 4 padkage 5
package 6 package 7 package 8 package 9 package 10



Frequently Asked Questions (FAQ):

  1. What is the maximum temperature zirconium foil can withstand?
    Zirconium foil can maintain its properties at temperatures up to 1000°C and beyond, making it ideal for high-temperature applications.

  2. Can I customize the dimensions of zirconium foil?
    Yes, we offer full customization services for dimensions, thickness, and packaging to meet your specific project requirements.

  3. What are the lead times for zirconium foil orders?
    Lead times vary based on order size and customization. Typical orders are fulfilled within 3-4 weeks.

  4. Is zirconium foil suitable for medical applications?
    Yes, due to its biocompatibility, zirconium foil is suitable for use in medical devices and implants.

  5. Do you offer international shipping?
    Yes, we ship to clients worldwide and offer flexible shipping solutions based on your location and timeline.



Contact Us

Are you looking for a reliable supplier of High-Temperature Zirconium Foil? Contact Shaanxi Peakrise Metal Co., Ltd. today for high-quality, customized zirconium foil solutions. Whether you need a small prototype batch or a large industrial order, we are here to help. Reach out to us at info@peakrisemetal.com for a quote or more information. Let's work together to bring your projects to life!
